Brawny XM

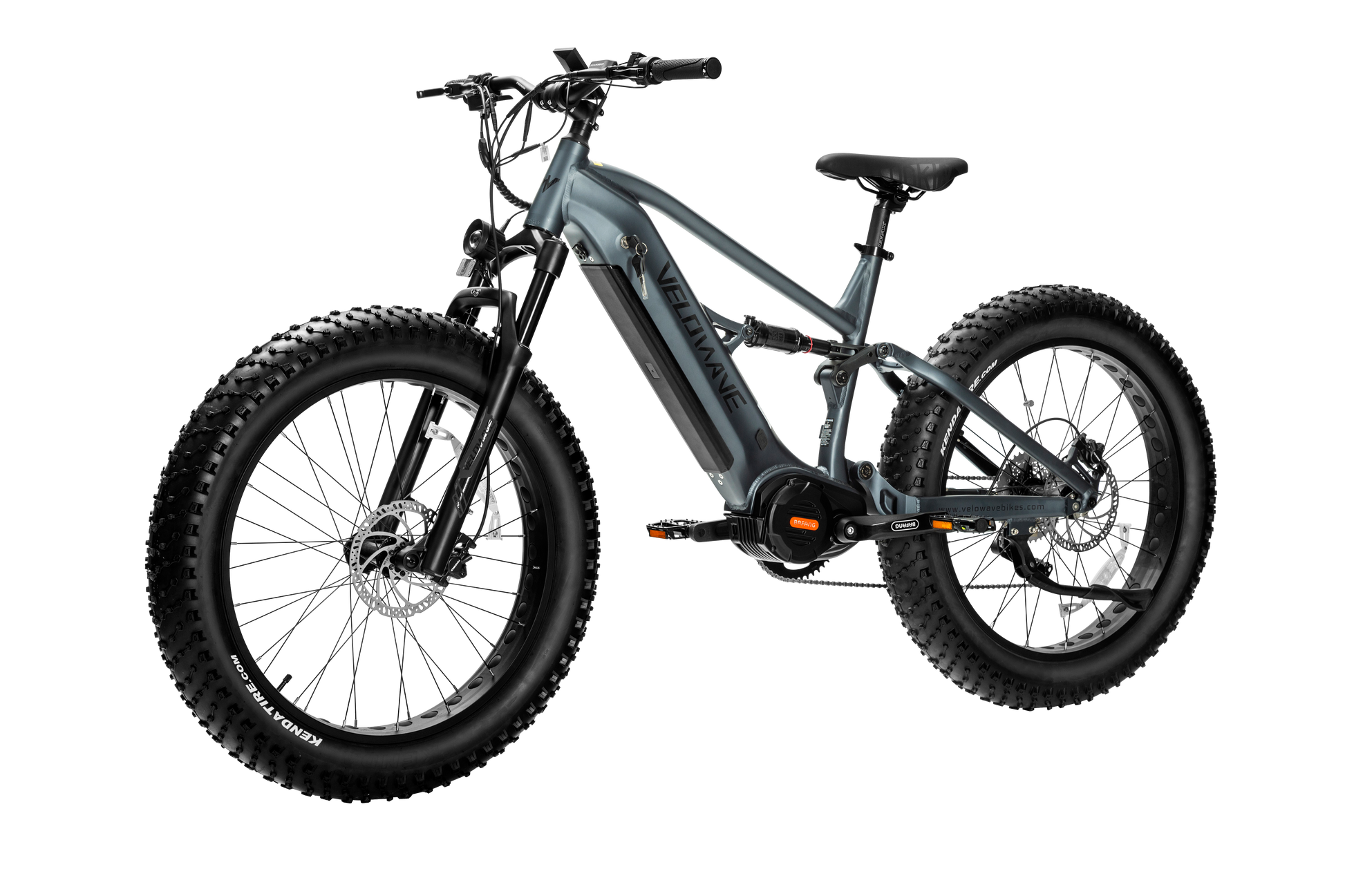

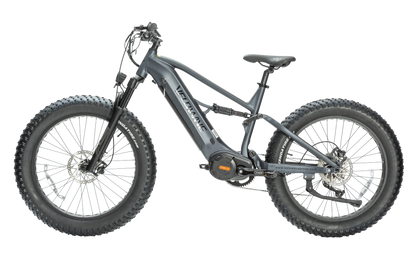

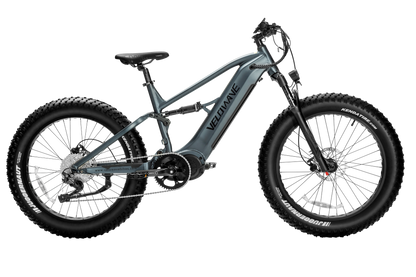

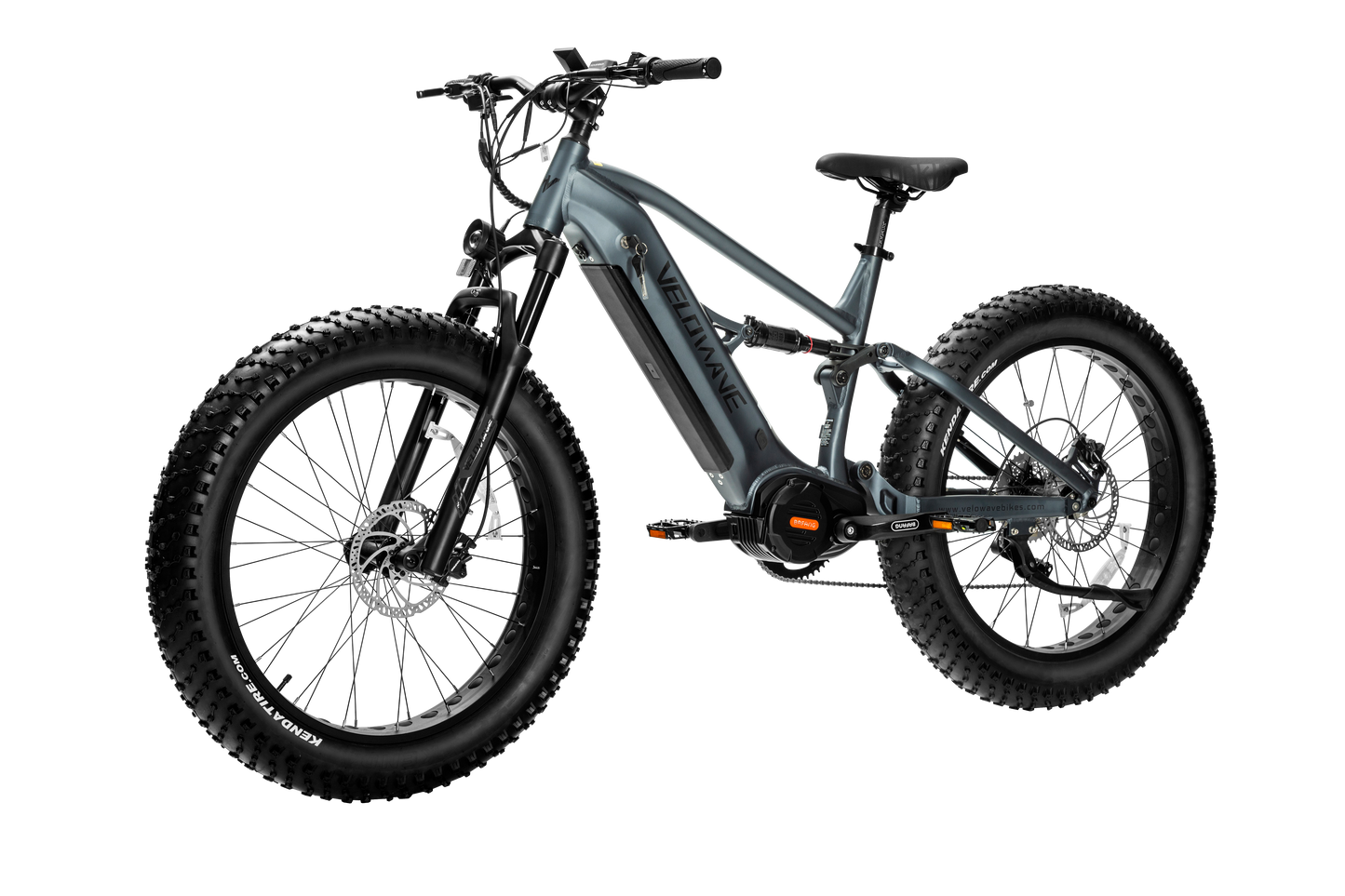

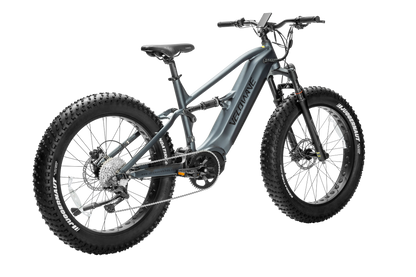

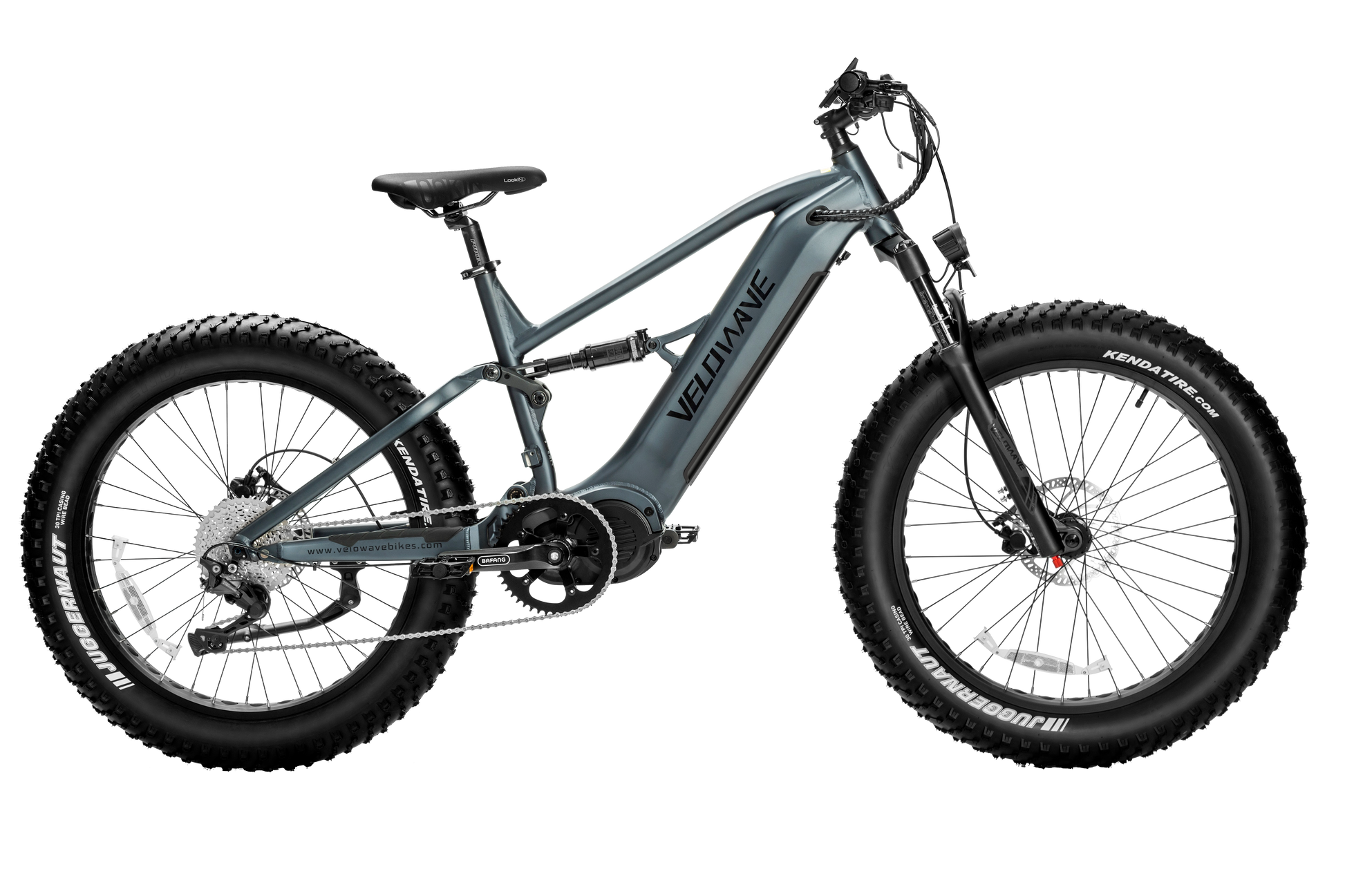

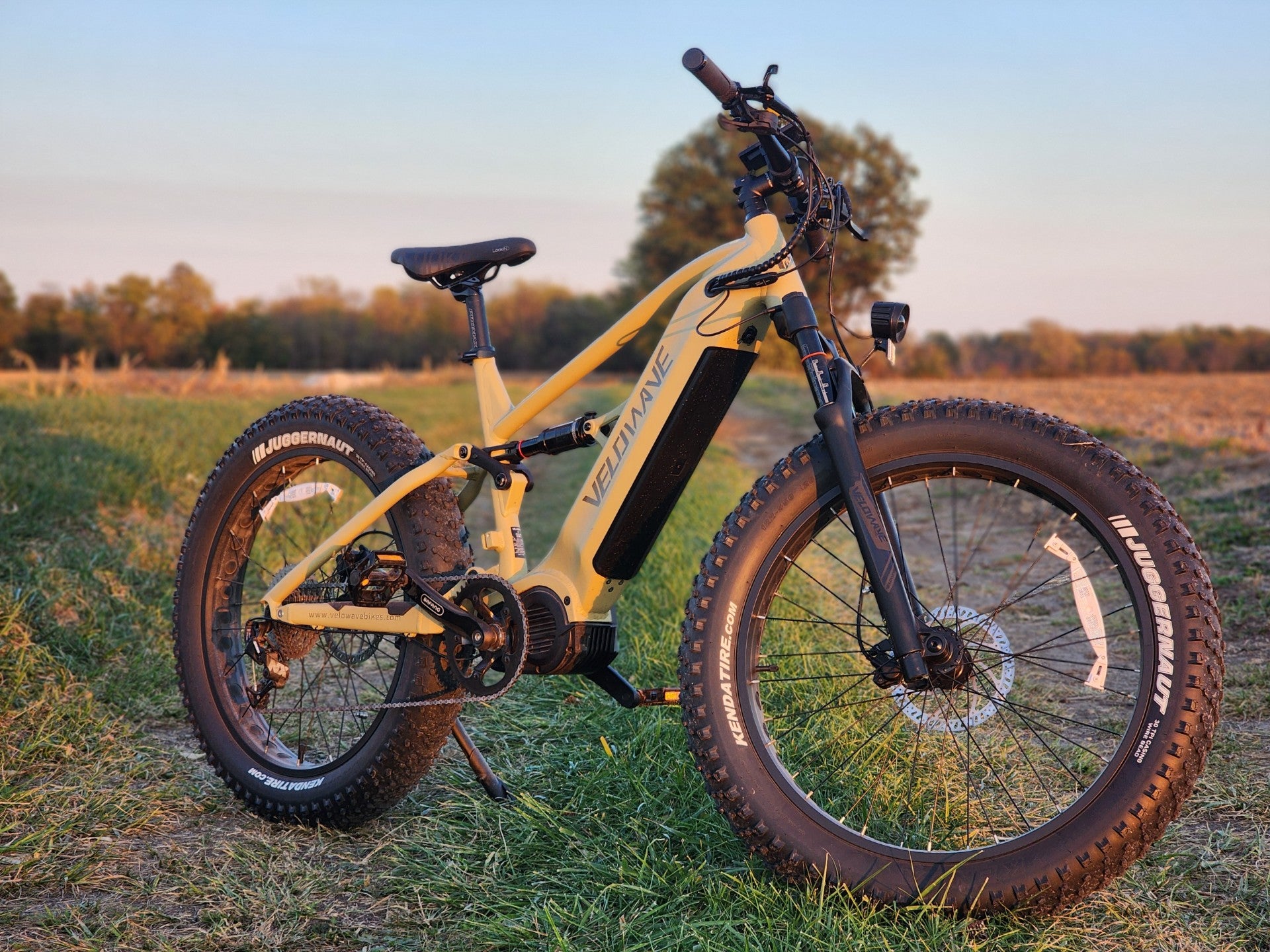

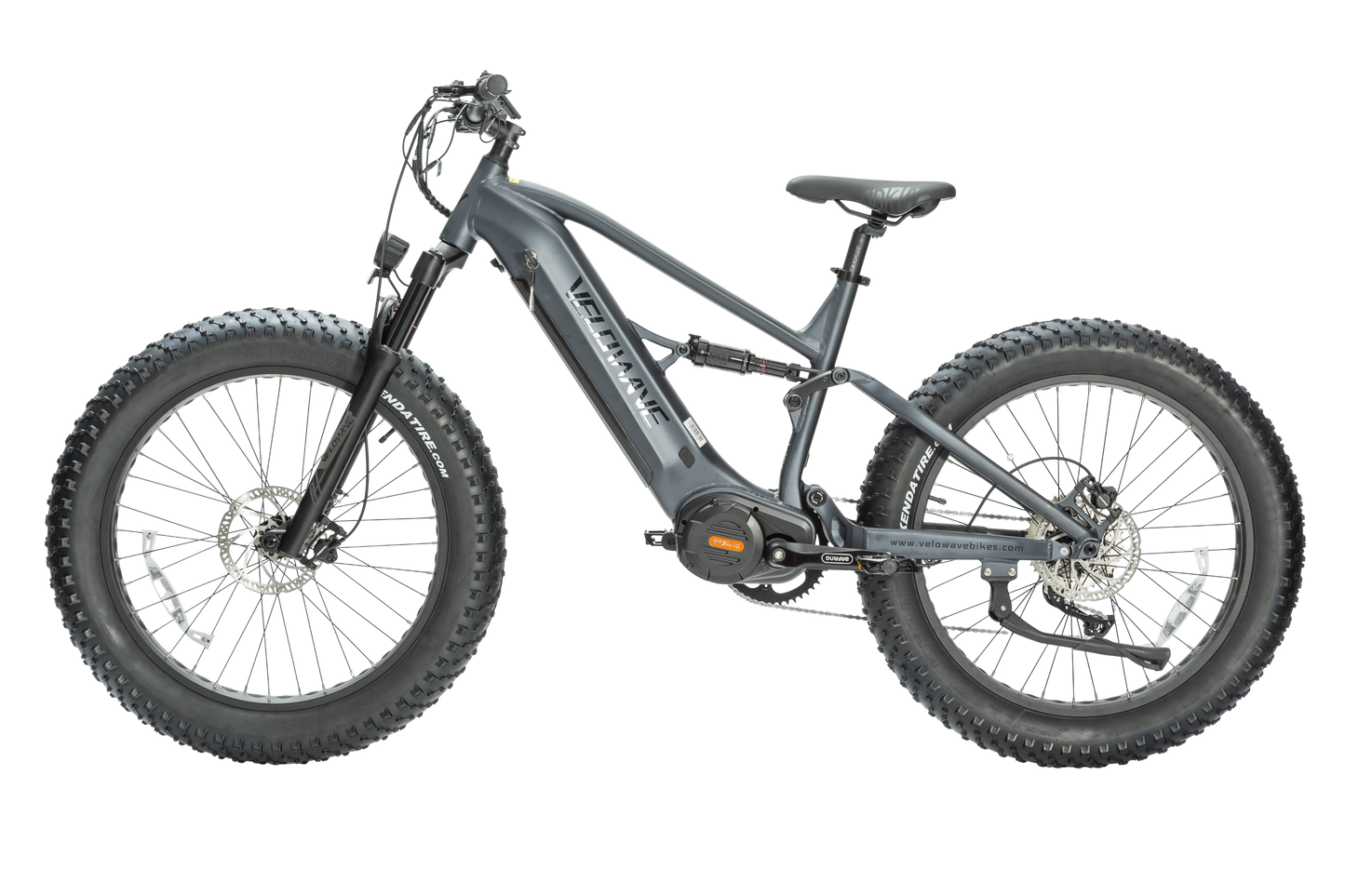

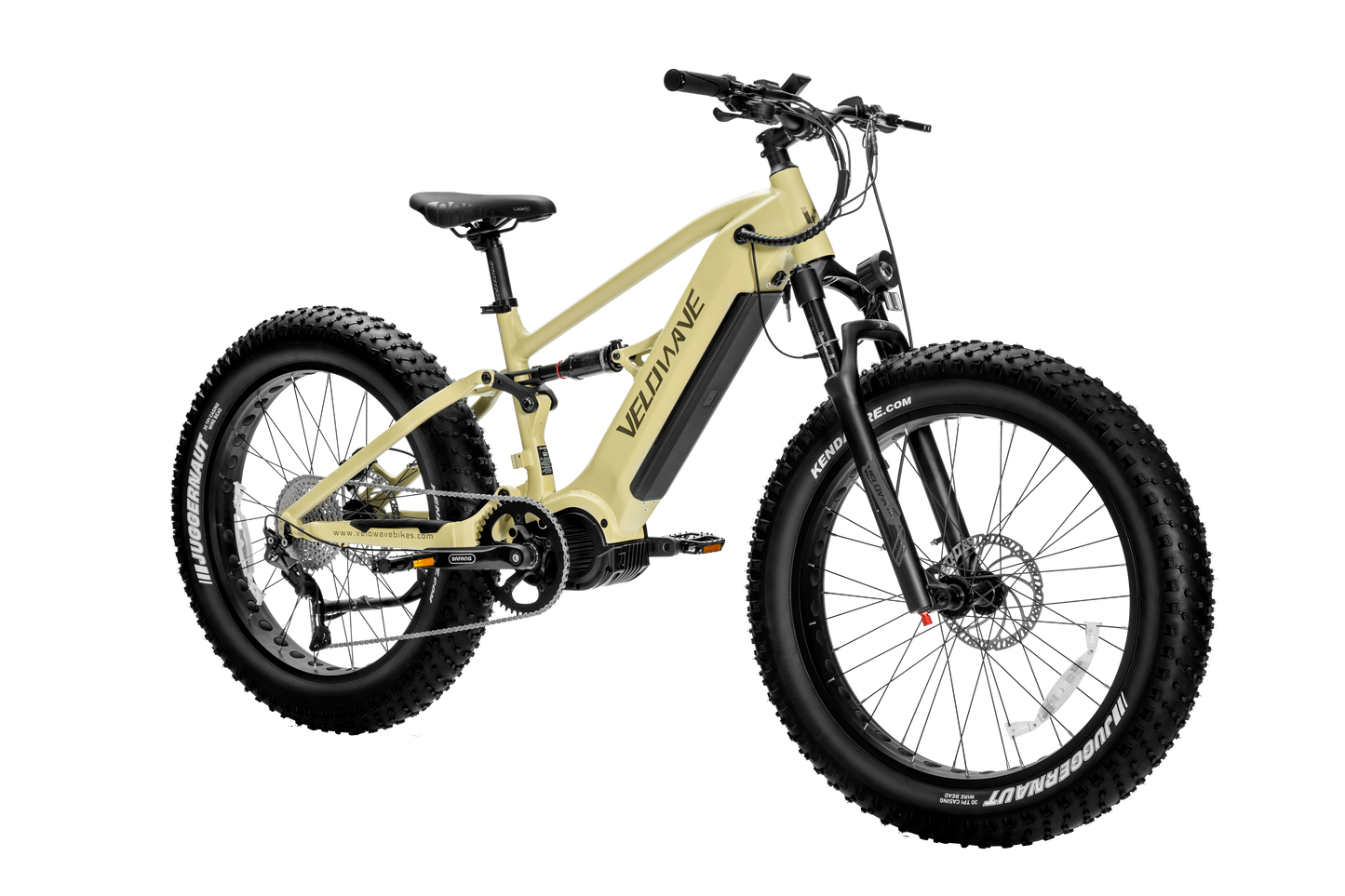

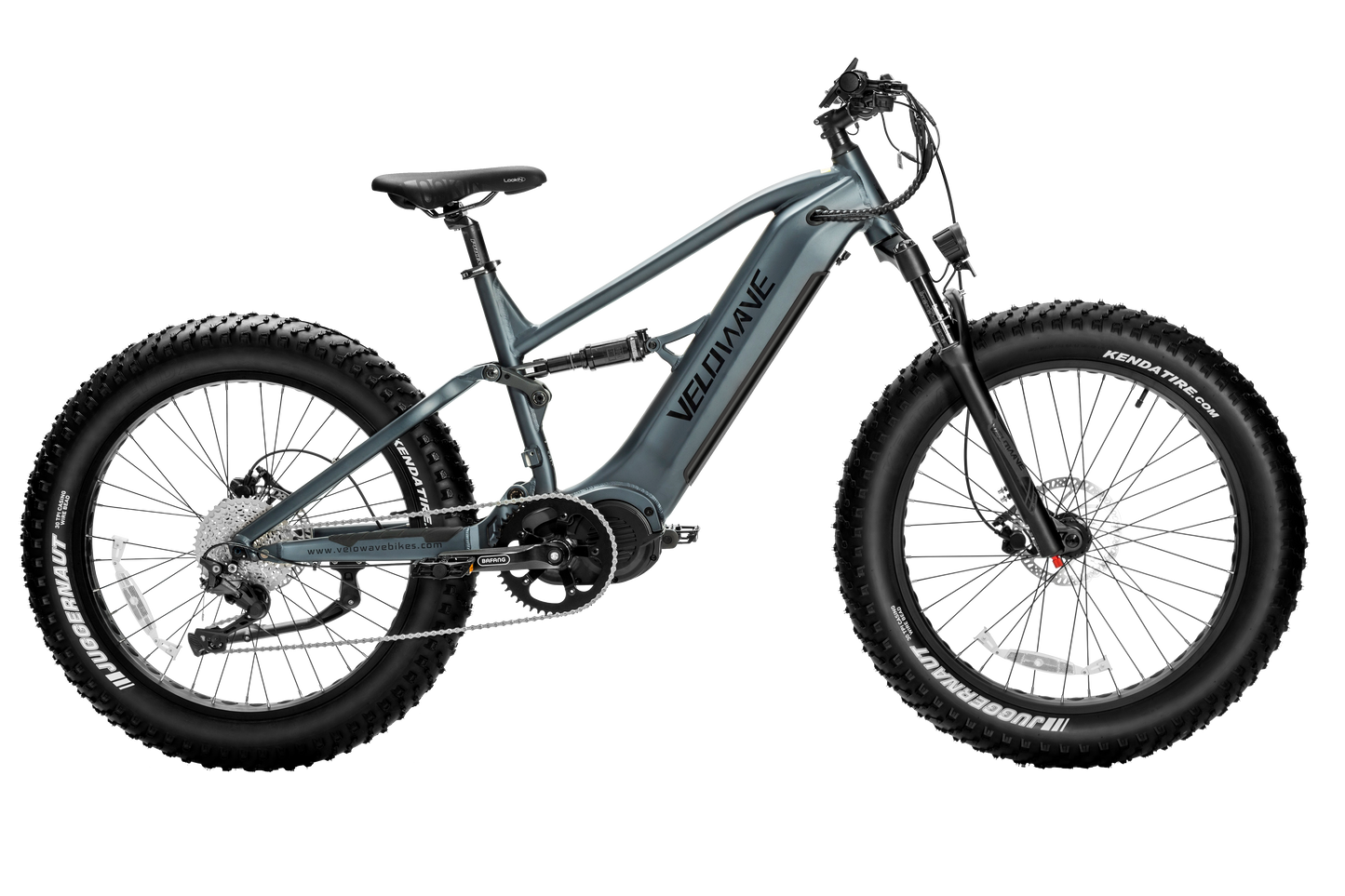

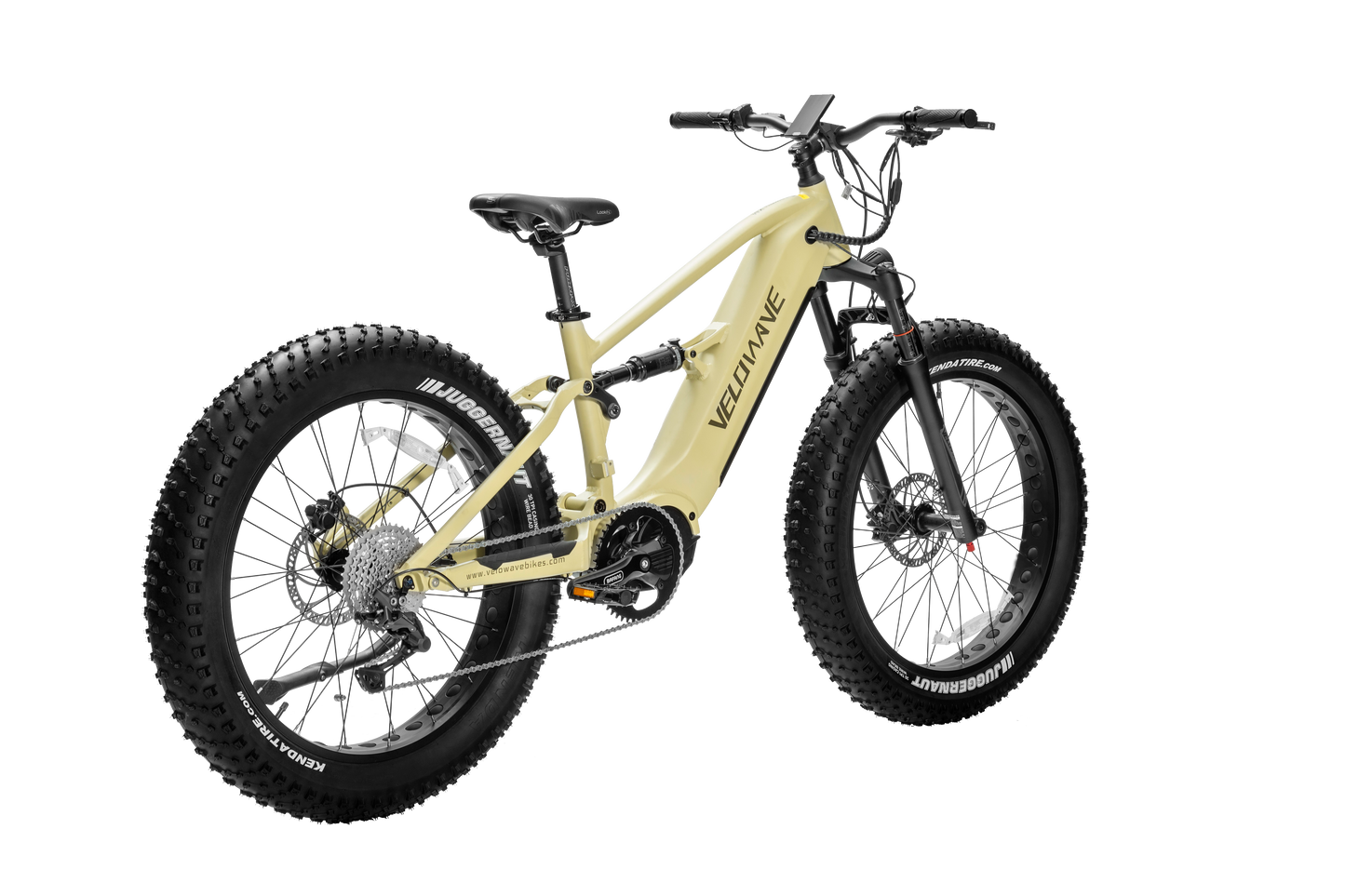

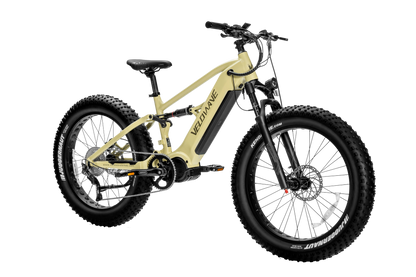

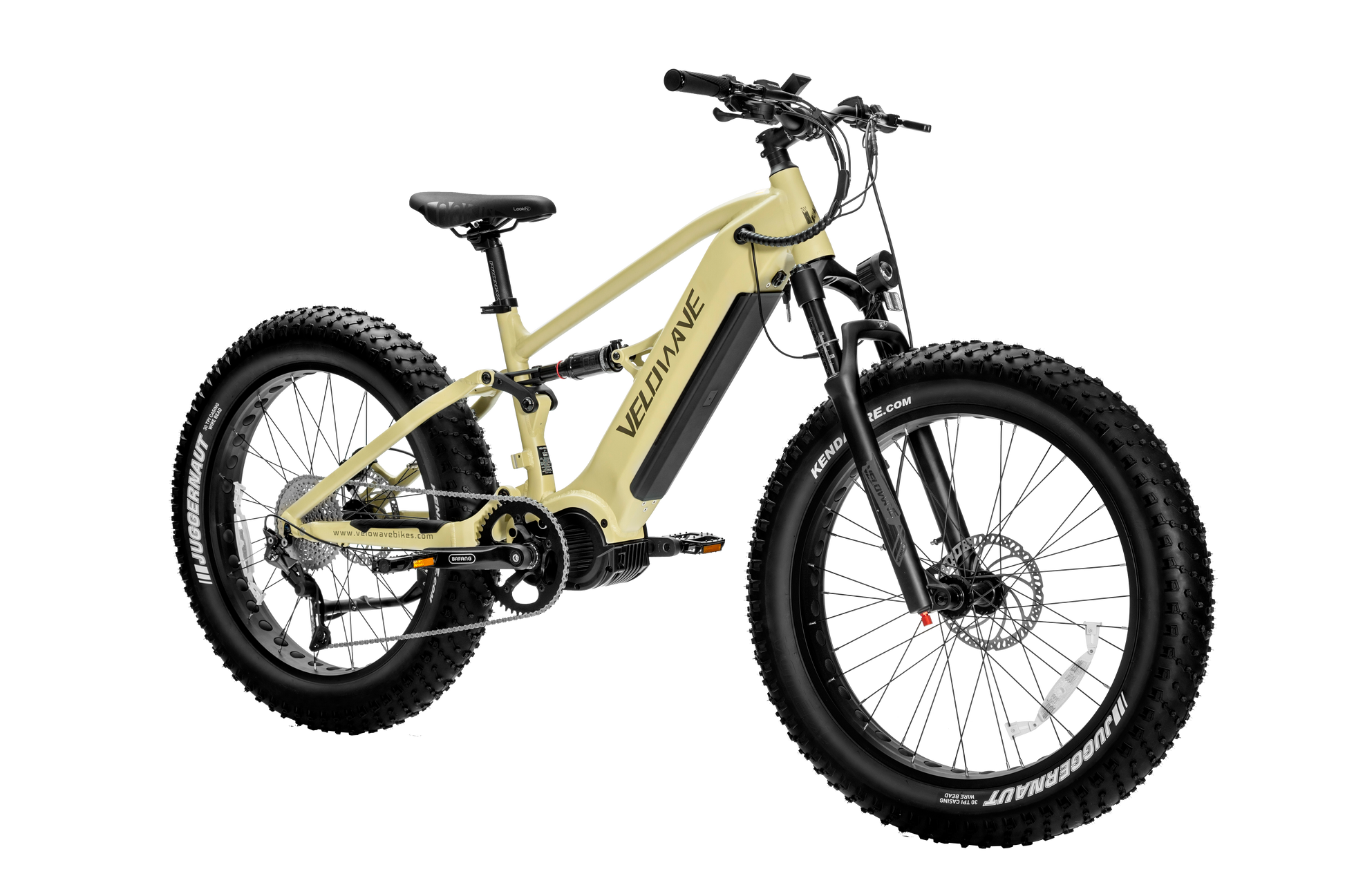

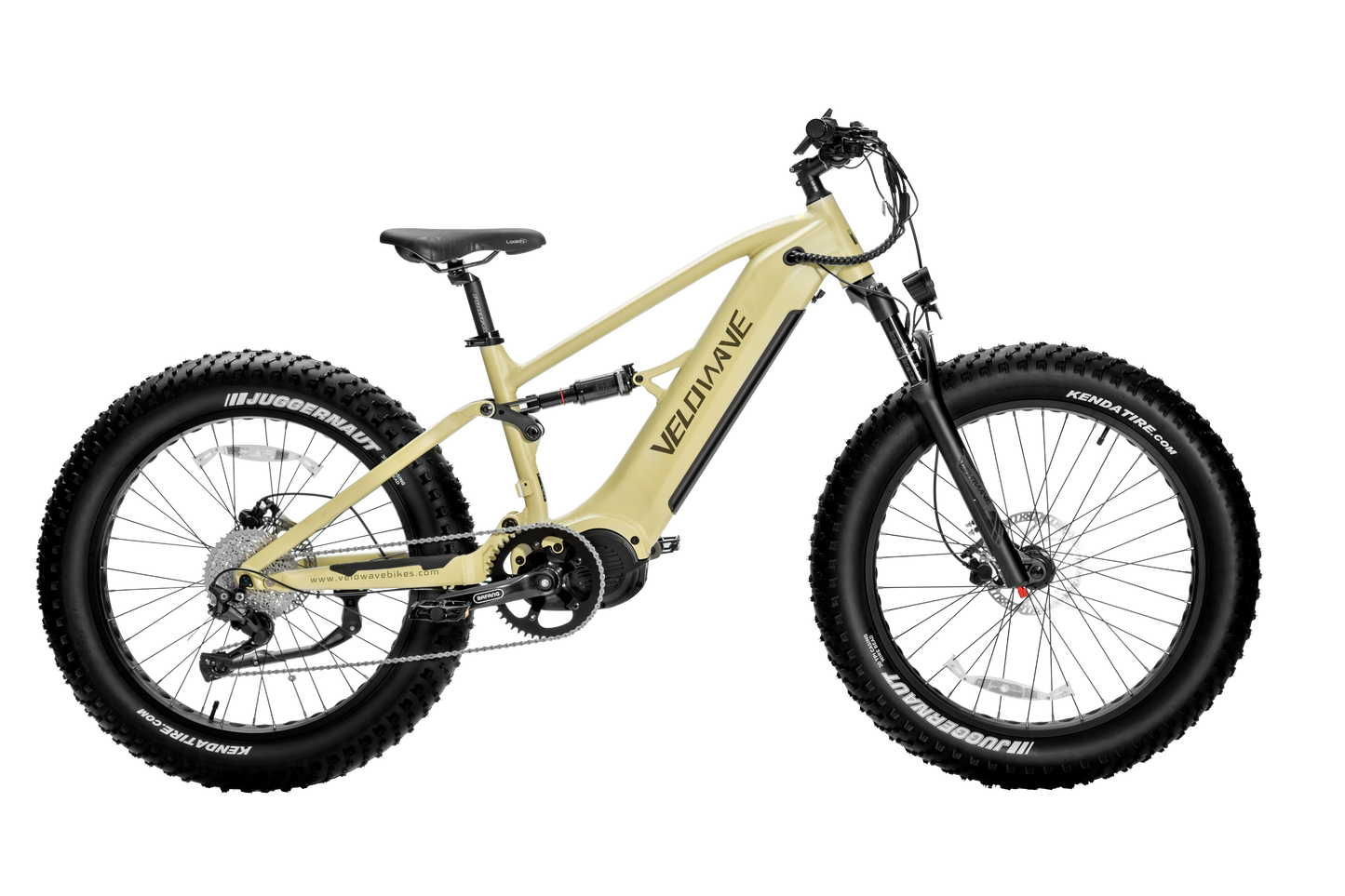

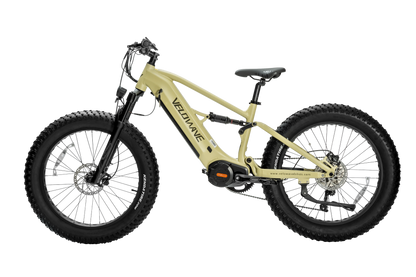

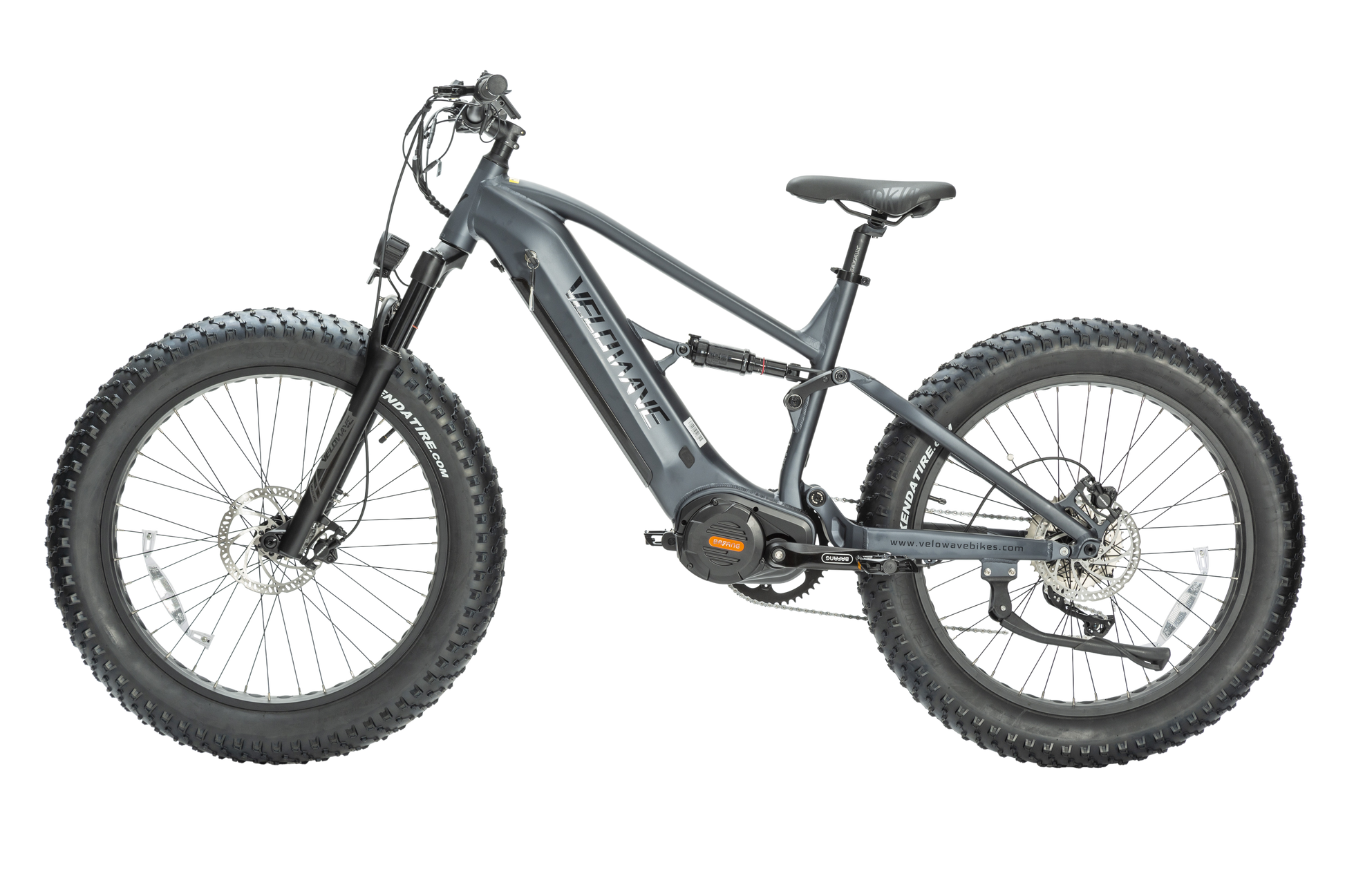

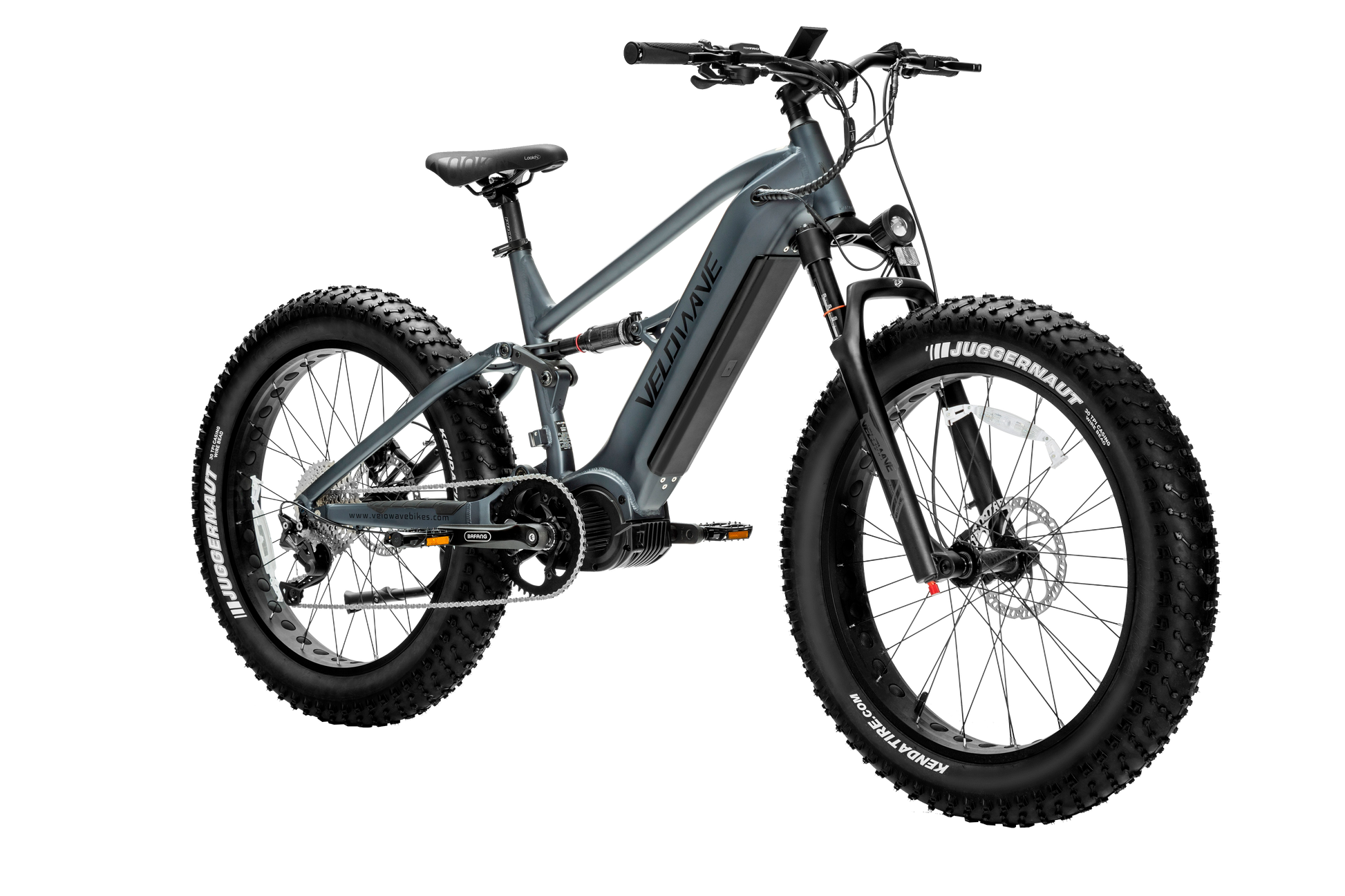

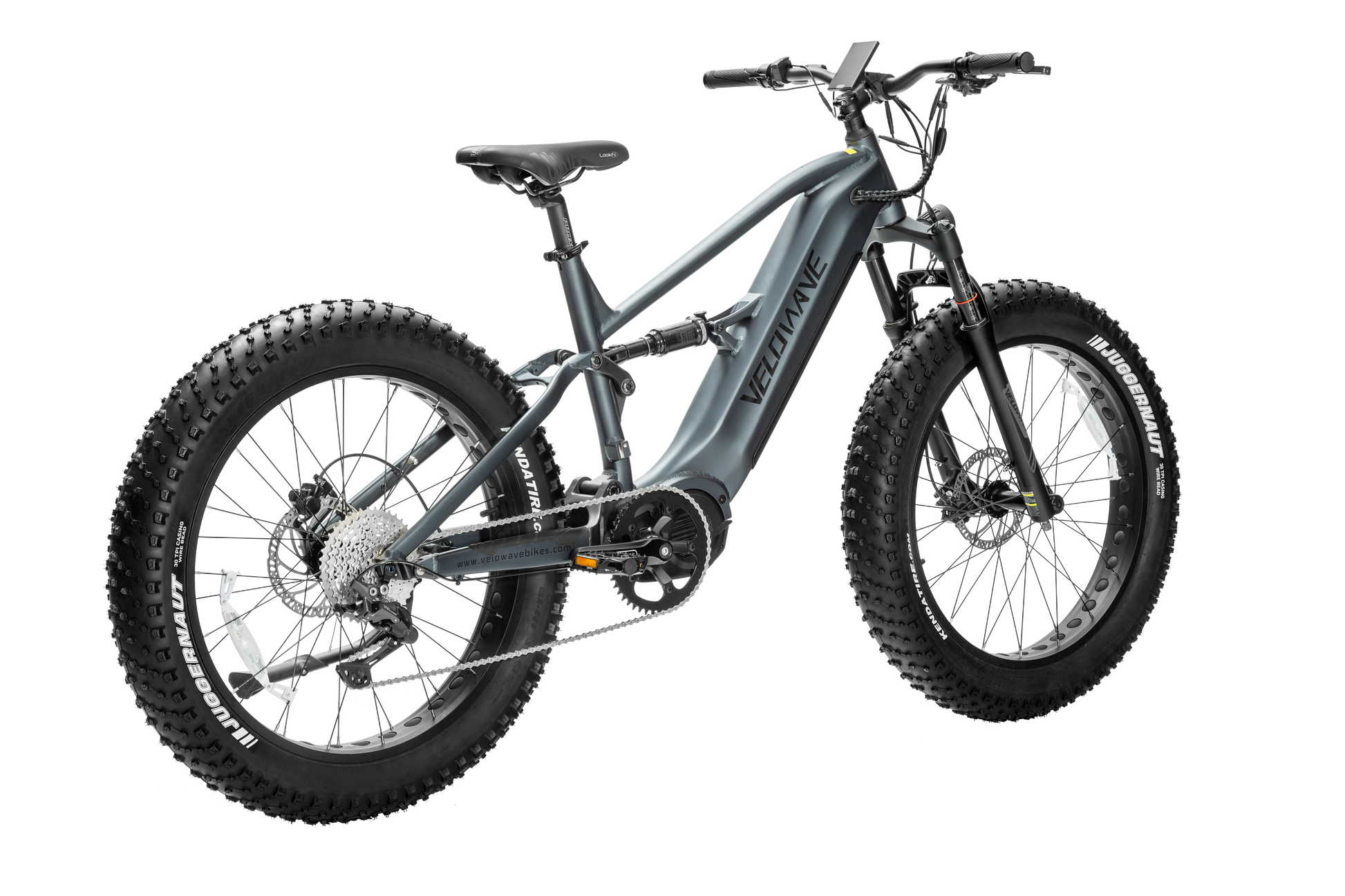

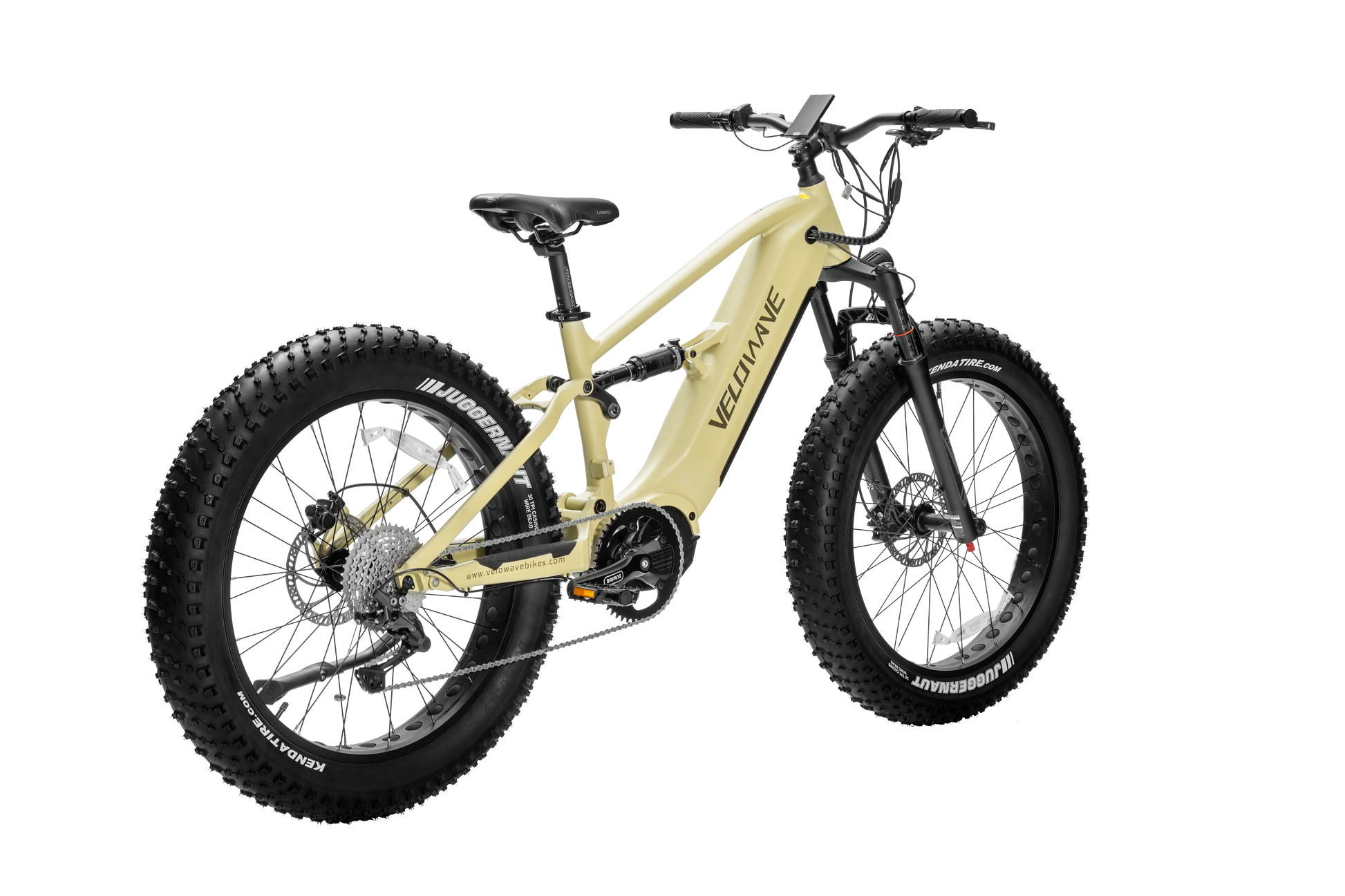

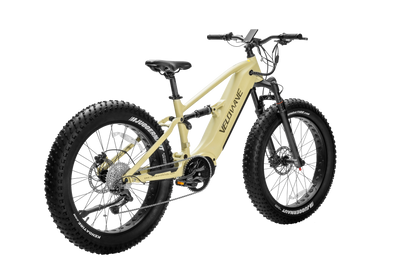

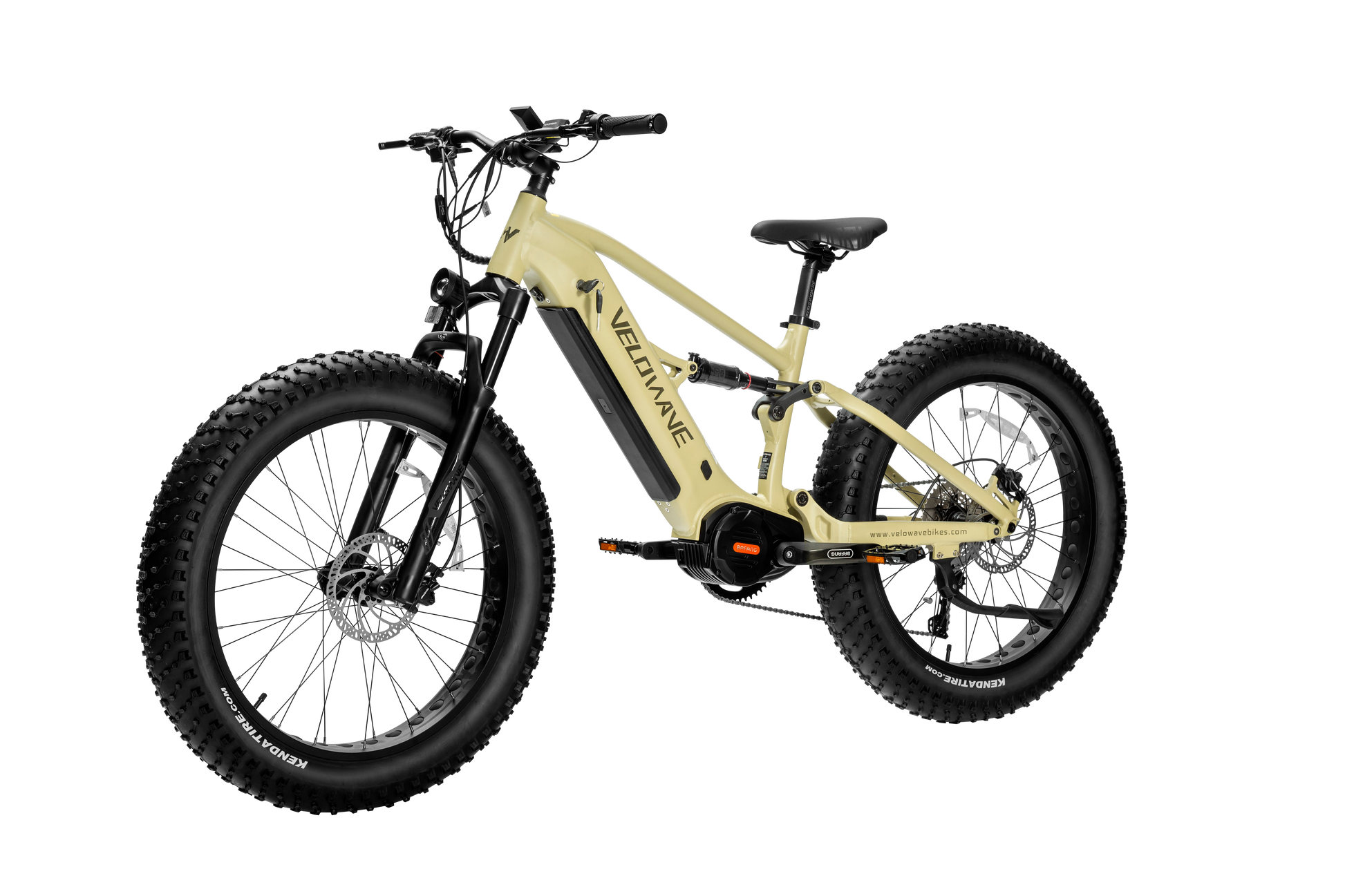

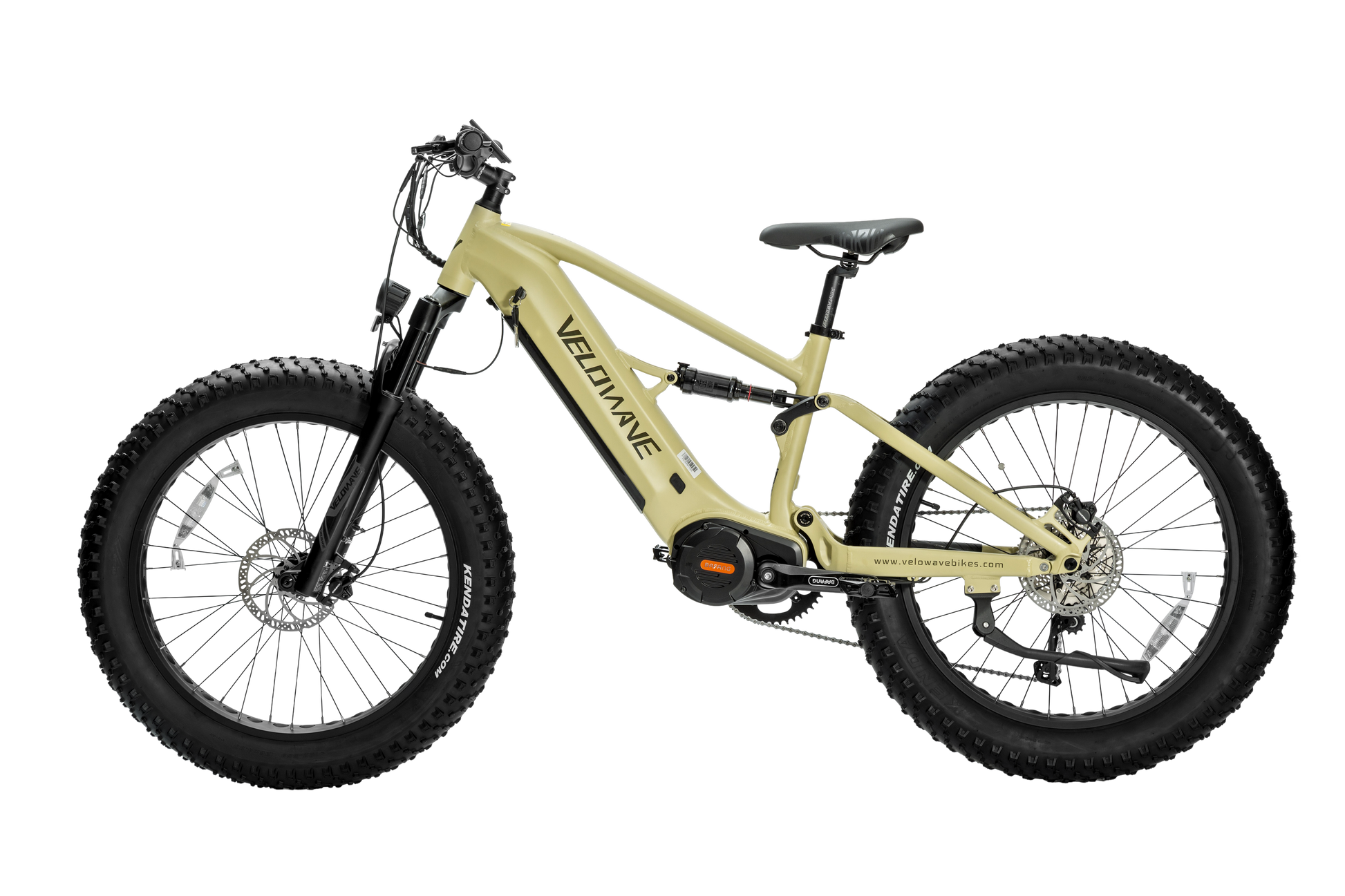

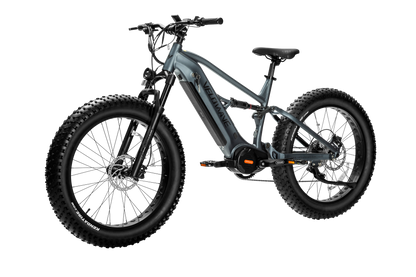

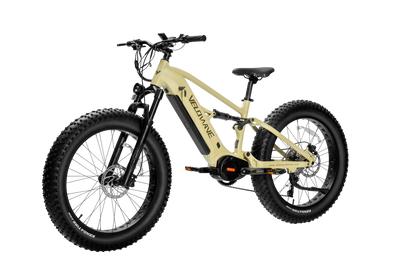

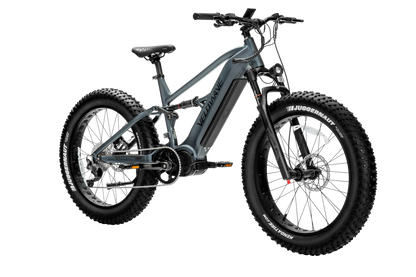

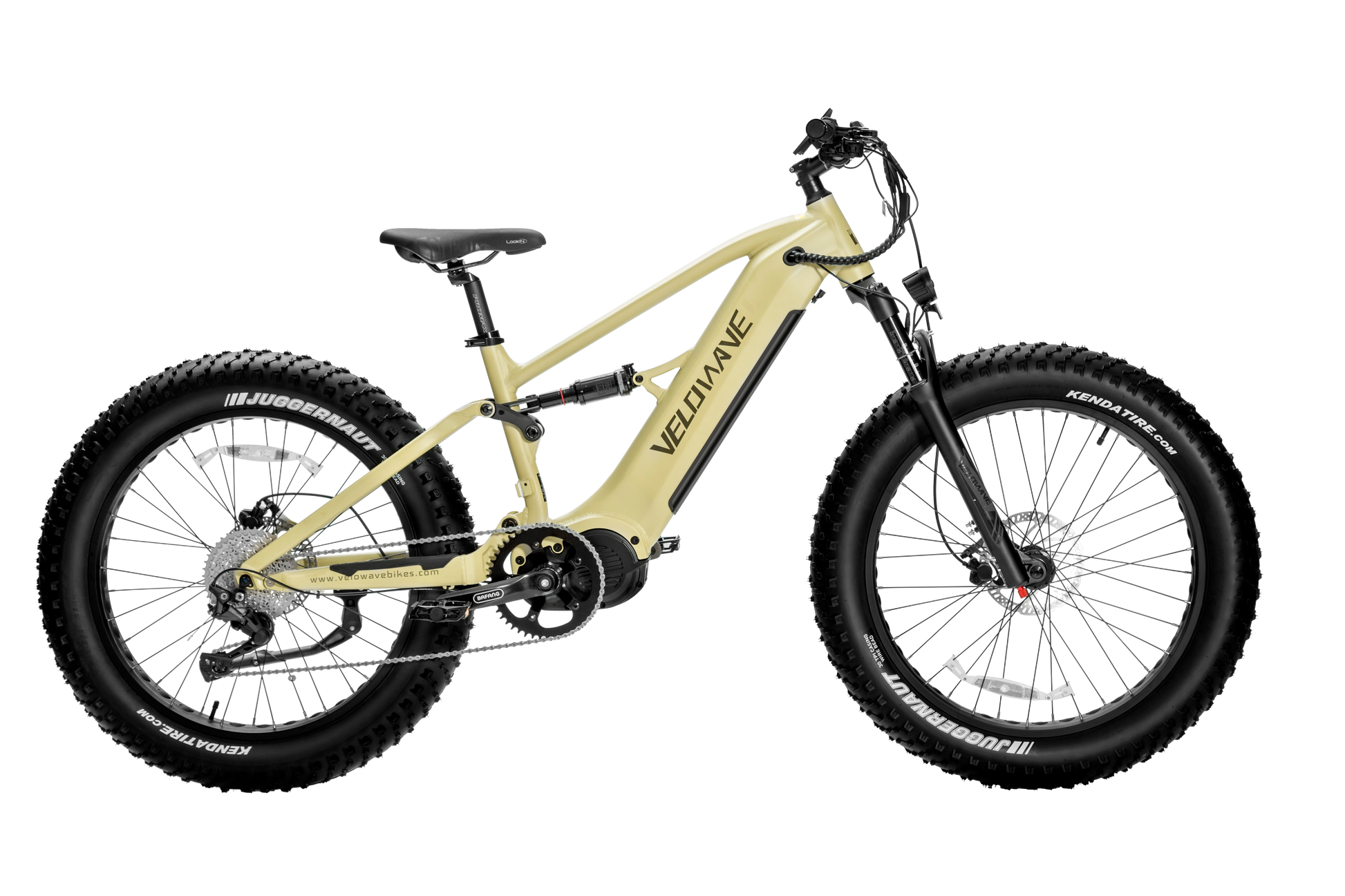

Unlock the freedom to conquer any terrain with the Brawny Electric Bike and redefine your limits with every ride. Crafted from lightweight aluminum alloy, the Brawny features a sleek frame with integrated front and rear suspension, offering 139mm of plush travel. It's designed to absorb bumps and smooth out rough terrain, ensuring a comfortable and controlled ride.
Key Features
Unstoppable Power
Equipped with a robust 1000W motor (peaking at 1200W) and delivering an impressive 160Nm of torque, the Brawny effortlessly powers through inclines and rough landscapes, making every ride exhilarating.
Suspension and Brake
Take on rough terrains with confidence thanks to the air suspension fork with 100mm travel and lockout feature, coupled with a Rockshox RS-MNR-R-C4 rear suspension for 44mm travel and external rebound adjustment. Tektro hydraulic disc brakes with 180mm discs and a power-cut-off function ensure reliable stopping power under any conditions.
Smart Display and Speed
Navigate with confidence using the TFT Smart Easy Read Display, featuring a colorful screen and backlight for easy readability in all conditions. Enjoy speeds up to 37 MPH with pedal assist and up to 20 MPH on throttle mode, ensuring a swift and responsive ride.
Specs & Size
| Size | 17'' | 19'' |
|---|---|---|
| Total Length | 2087mm | 2100mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 432mm | 483mm |
| Handlebar Height | 1158mm | 1158mm |
| Wheelbase | 1318mm | 1331mm |
| Standover Height | 774mm | 823mm |
| Reach | 469mm | 475mm |
| Seat Height Min/Max | 841mm/1040mm | 890mm/1090mm |
General
- Classes: Off-Road (Ebikes can go up to 37mph with pedal assistance)
- Max Speed: Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
- Range: Avg. 75 Miles on PAS, up to 85 Miles on Level 1, 60 Miles on Throttle
Frameset
- Frame: 6061 Aluminum Alloy with Internal Battery, Front and Rear Suspension, Frame Travel 139mm
- Fork: Air Suspension Fork with 100mm travel, with lockout

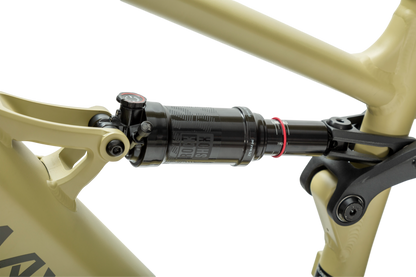

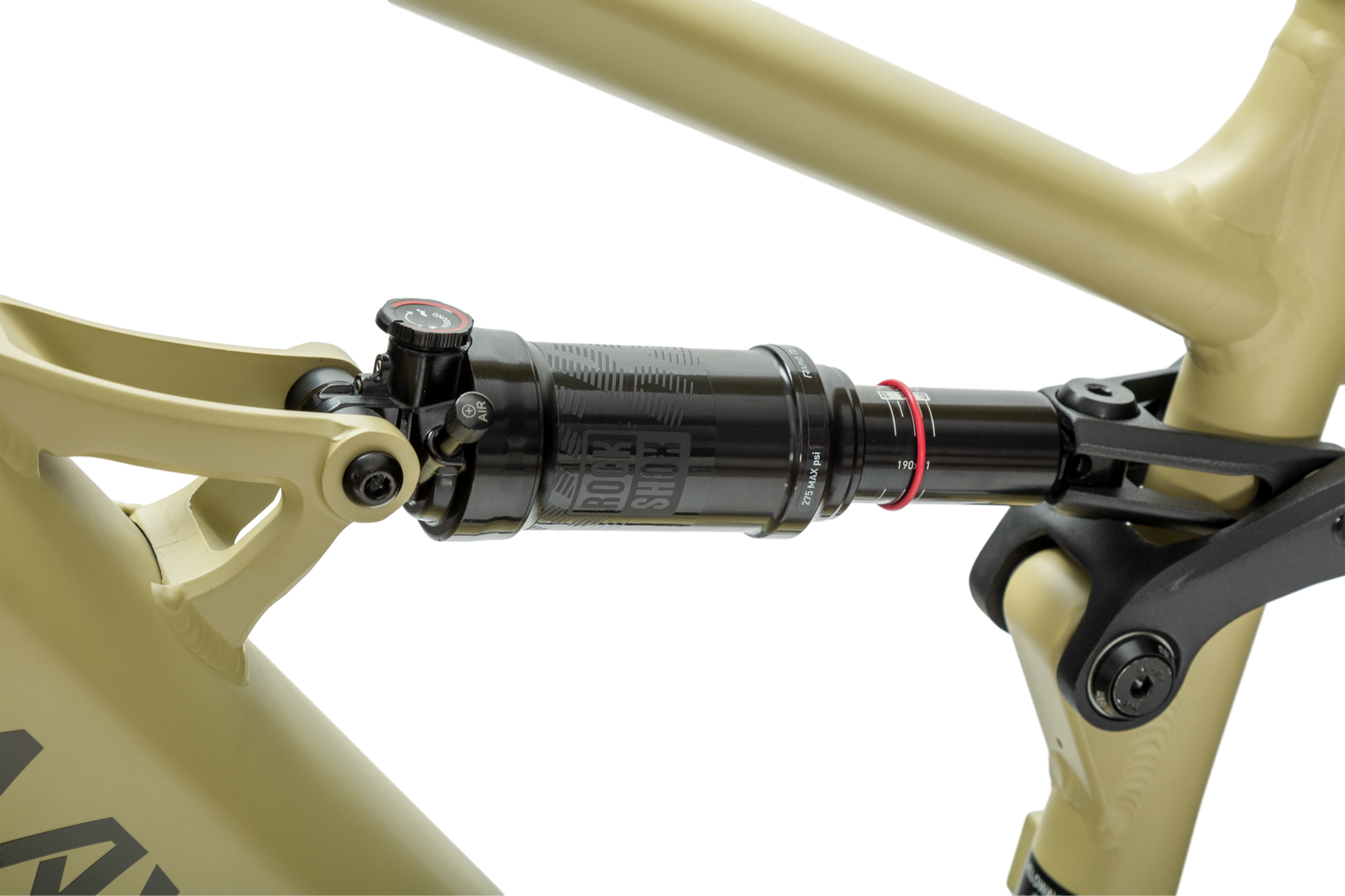

- Rear Suspension: Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, external rebound adjustment
Wheels
- Rim: Aluminum 26" 36H Front & Rear
- Tire: Kenda 26" x 4.8" Fat Tires
E-System
- Battery: Removable Internal Lithium-ion 48V 20Ah (960Wh) with LG cells
- Charger: 48V 3 Amp, Approx. 7 Hour Charging
- Motor: 1000W (Peak 1200W), 160Nm
- Display: TFT Smart Easy Read Display with Backlight
- Pedal Assist: 6 Levels
- Sensor: Torque Sensor
- Throttle: Throttle on demand from a complete stop

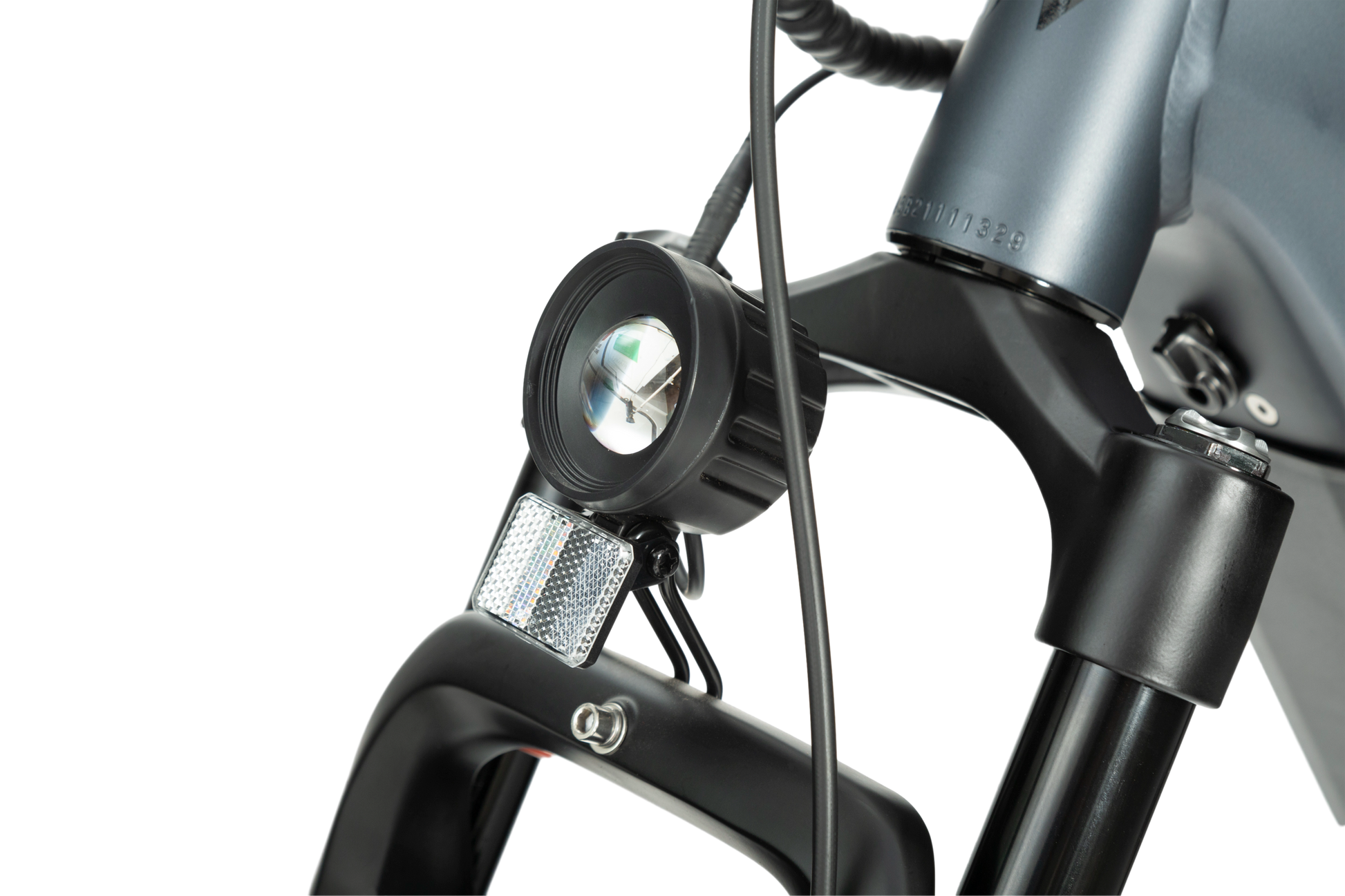

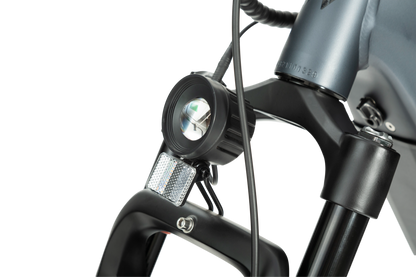

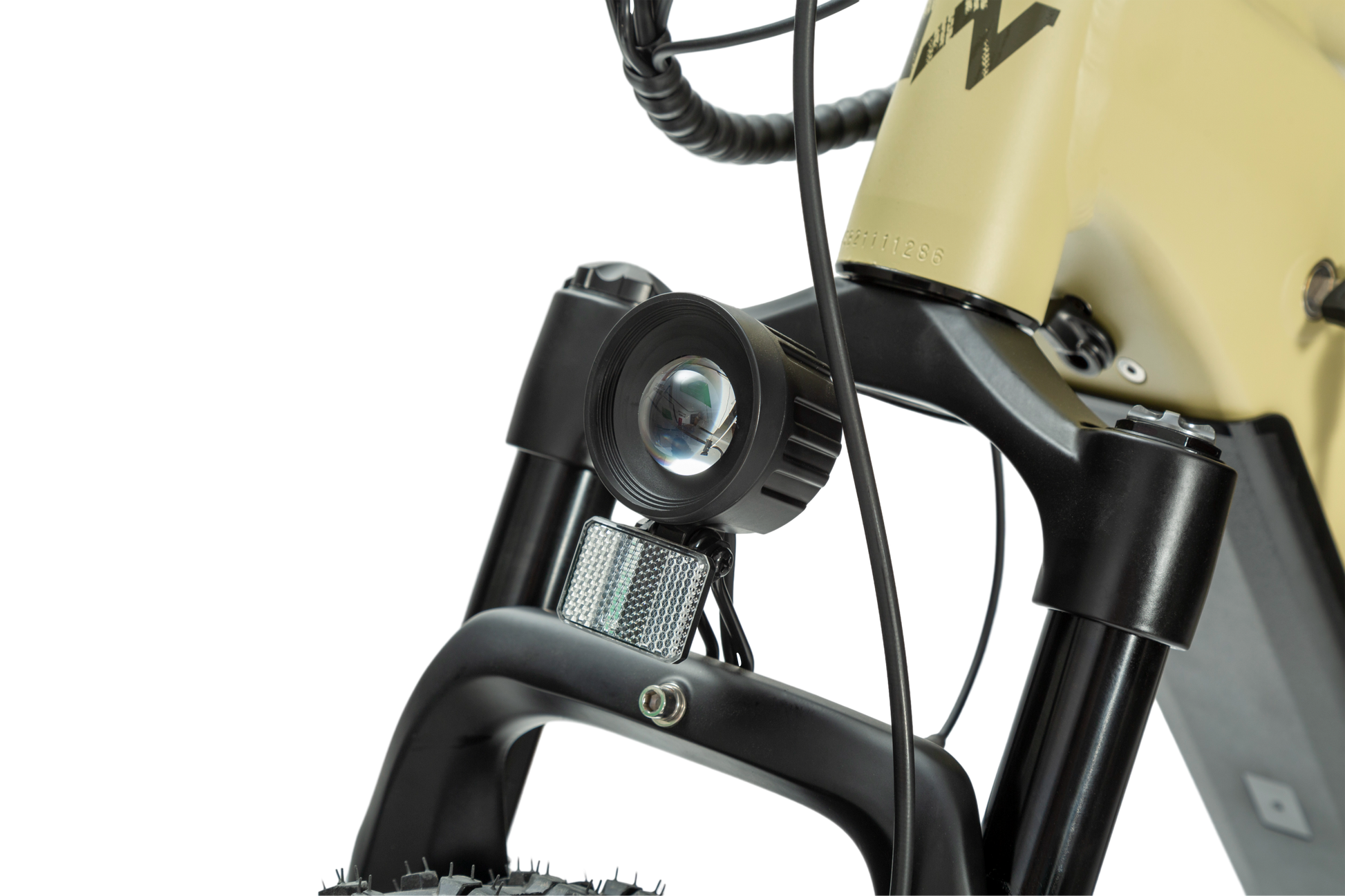

- Light: Front 48V LED 80 LUX; Rear Blinking Light
Drivetrain
- Shifter: Shimano 10-Speed Thumb Shift
- Crankset: 170mm w/ 48T
- Freewheel: Shimano 11-42T, 10-Speed Cassette
- Chain: KMC 134 Link, 10-Speed
- Rear Derailleur: Shimano Deore RD-M4120 11-Speed
Components

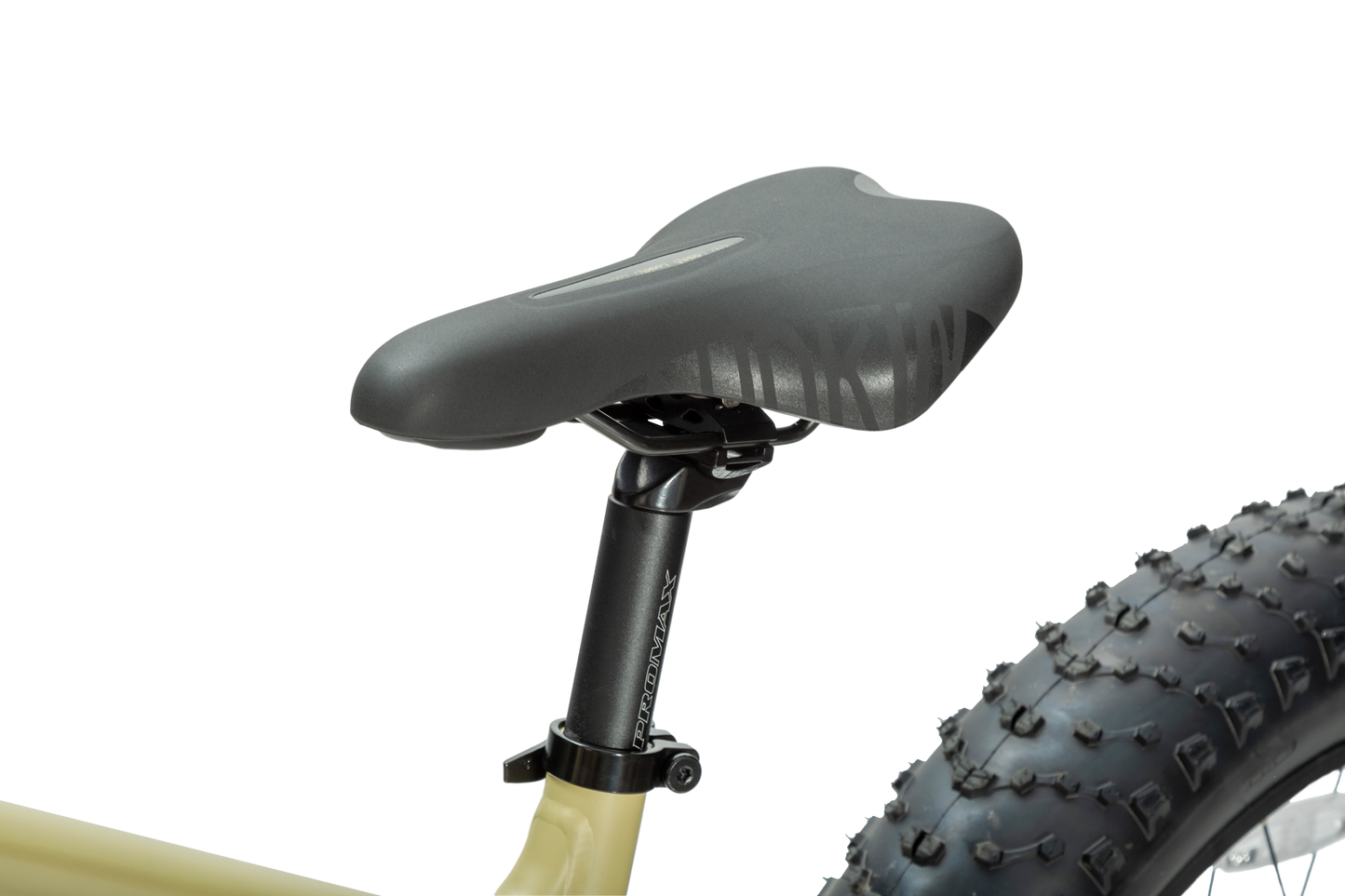

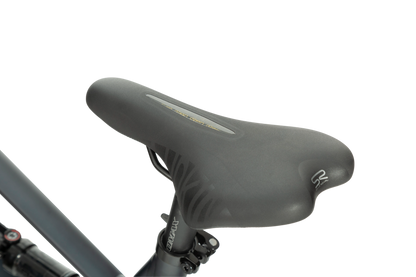

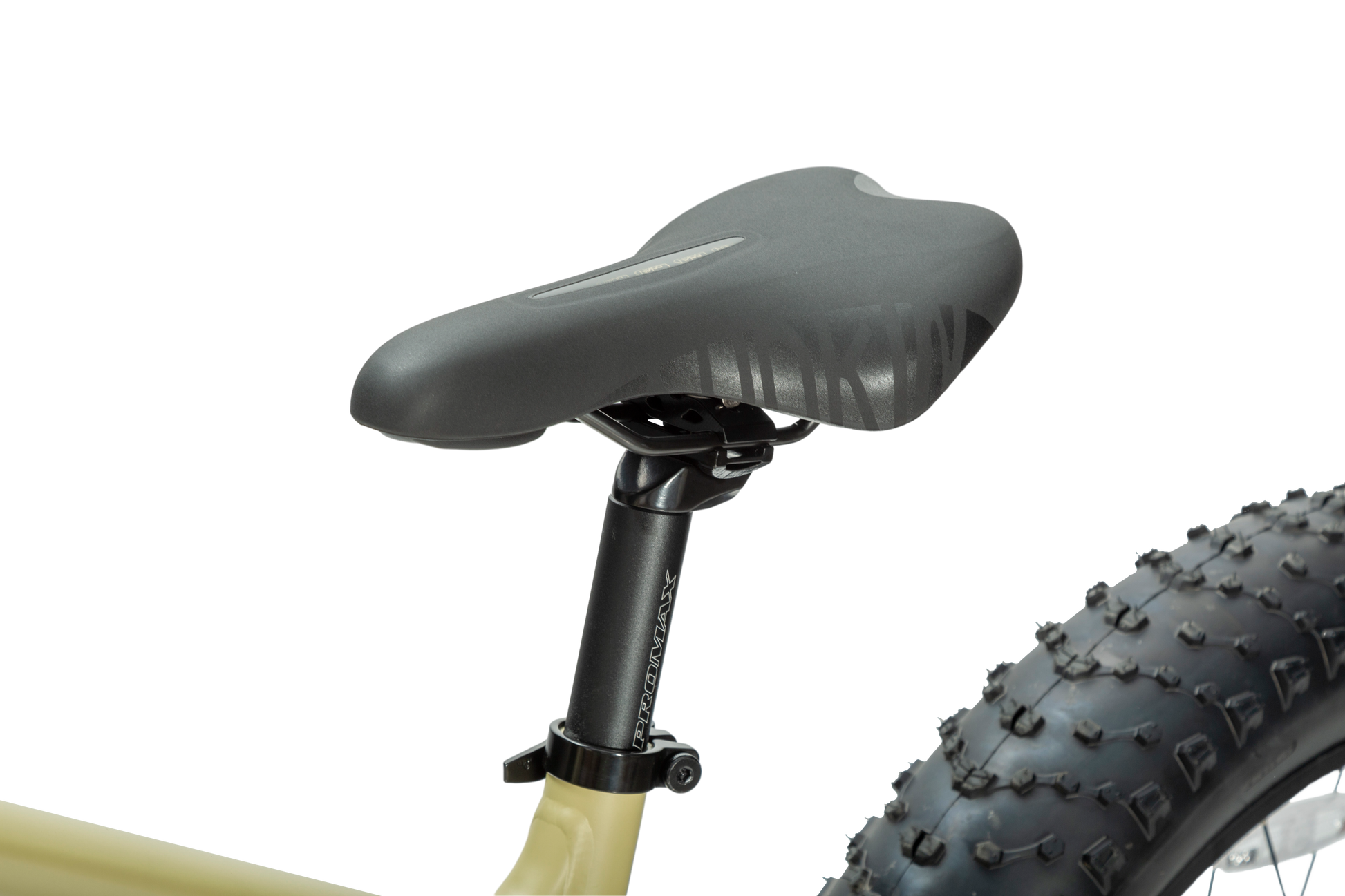

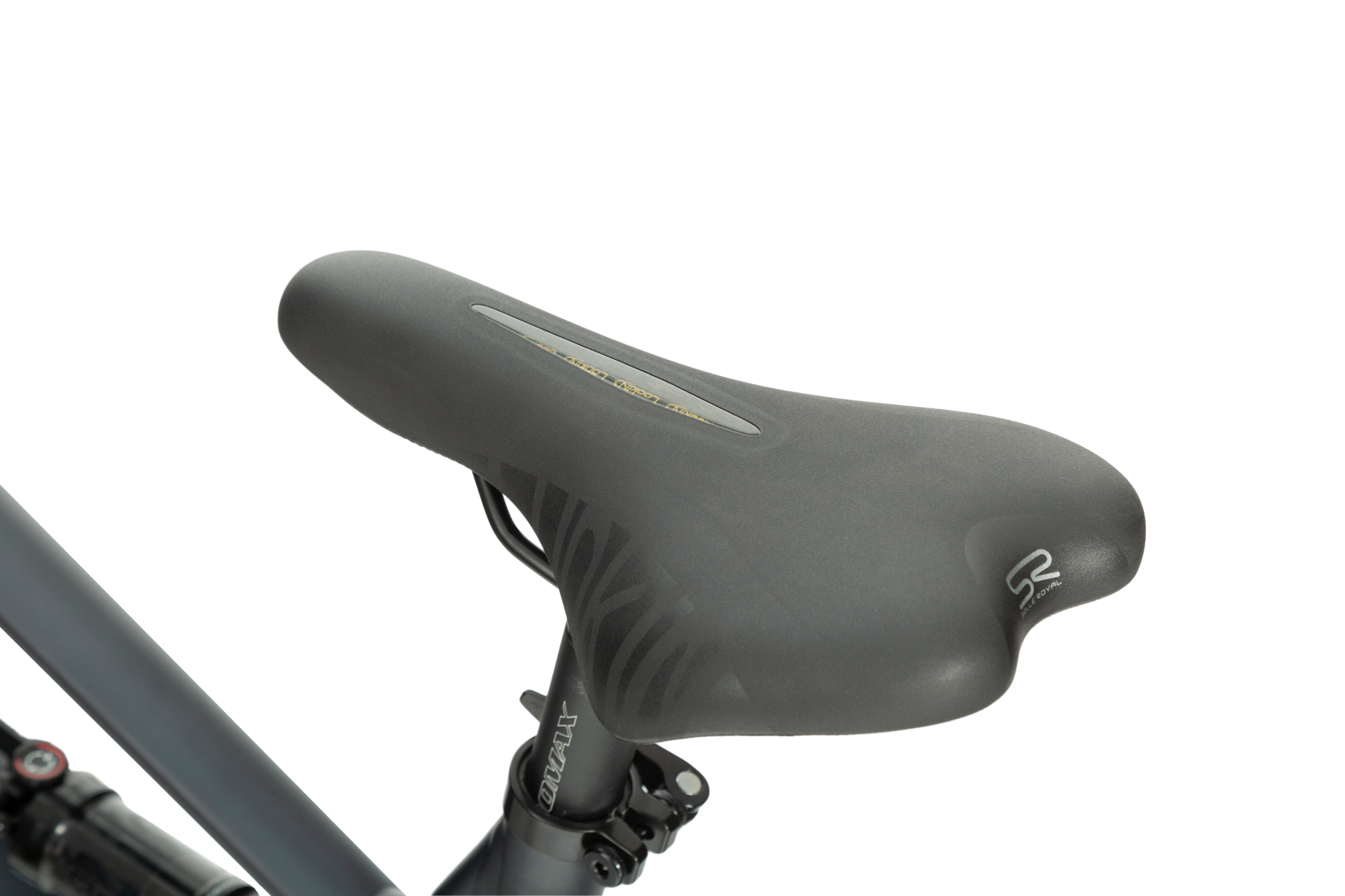

- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, φ31.6x300mm
- Handlebar: Aluminum Ø31.8mm, Width 740mm
- Brakes: Tektro Hydraulic Disc Brakes w/180mm discs, power-cut-off function
- Kickstand: Included, Rear Mount
- Fenders: Not Included
- Rear Rack: Not Included
Weight
- Net Weight: 82 lbs / 37.2 kg (including battery)
- Gross Weight: 111 lbs / 50.5 kg
- Battery Weight: 11.4 lbs / 5.15 kg
- Max Load Capacity: 385 lbs / 175 kg (including cargo)
Size
- Product Size: 2100 x 1158 x 745 mm
- Packing Size: 1700 x 350 x 900 mm
