Pony

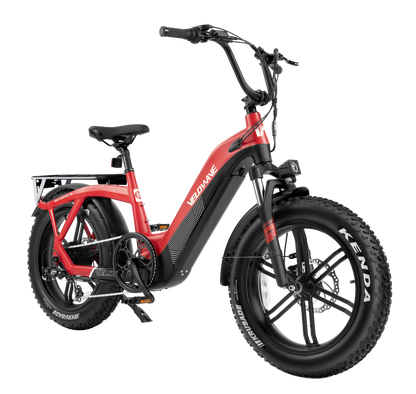

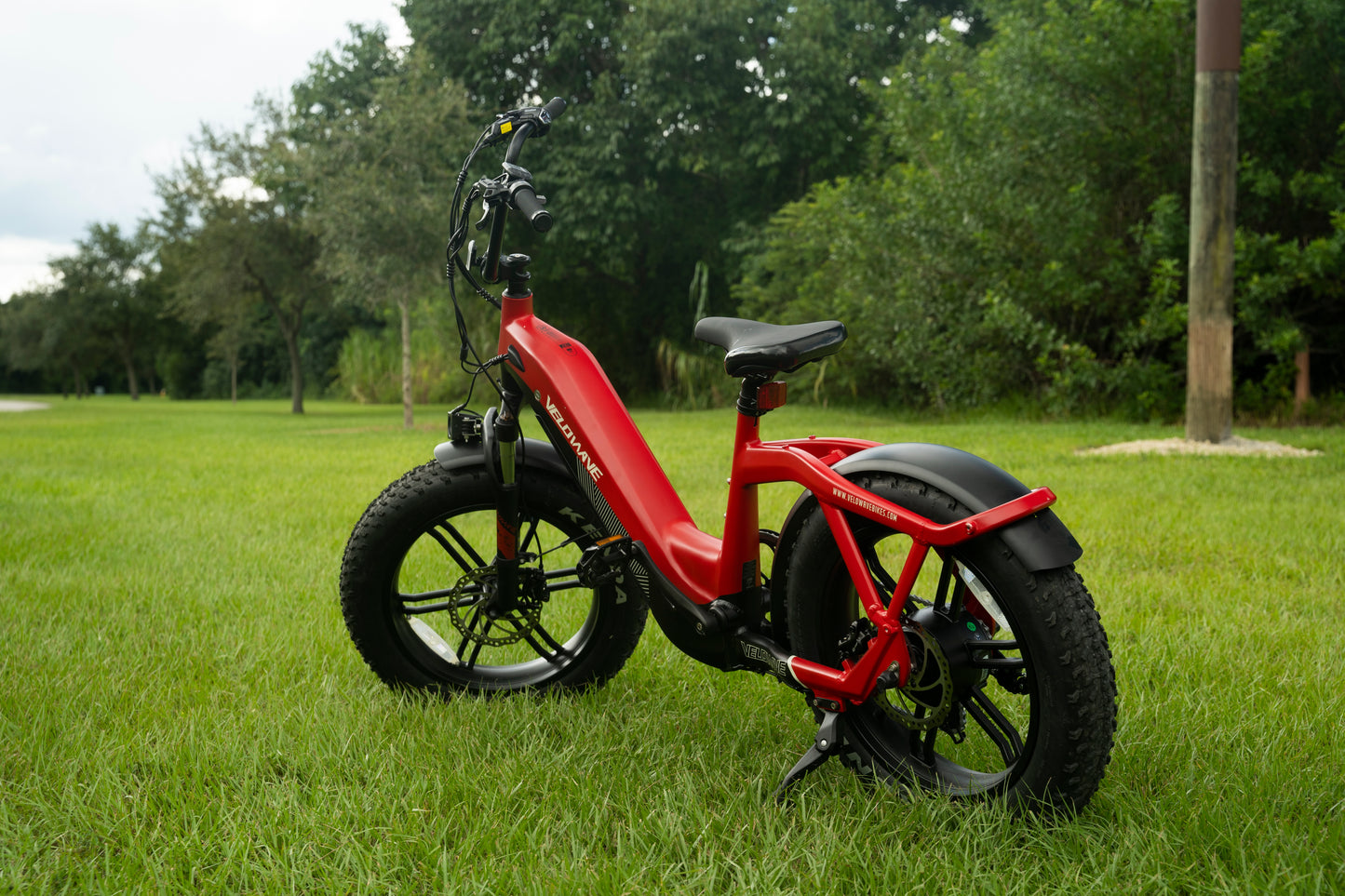

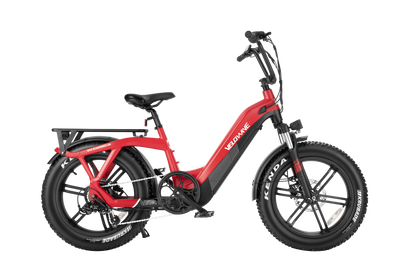

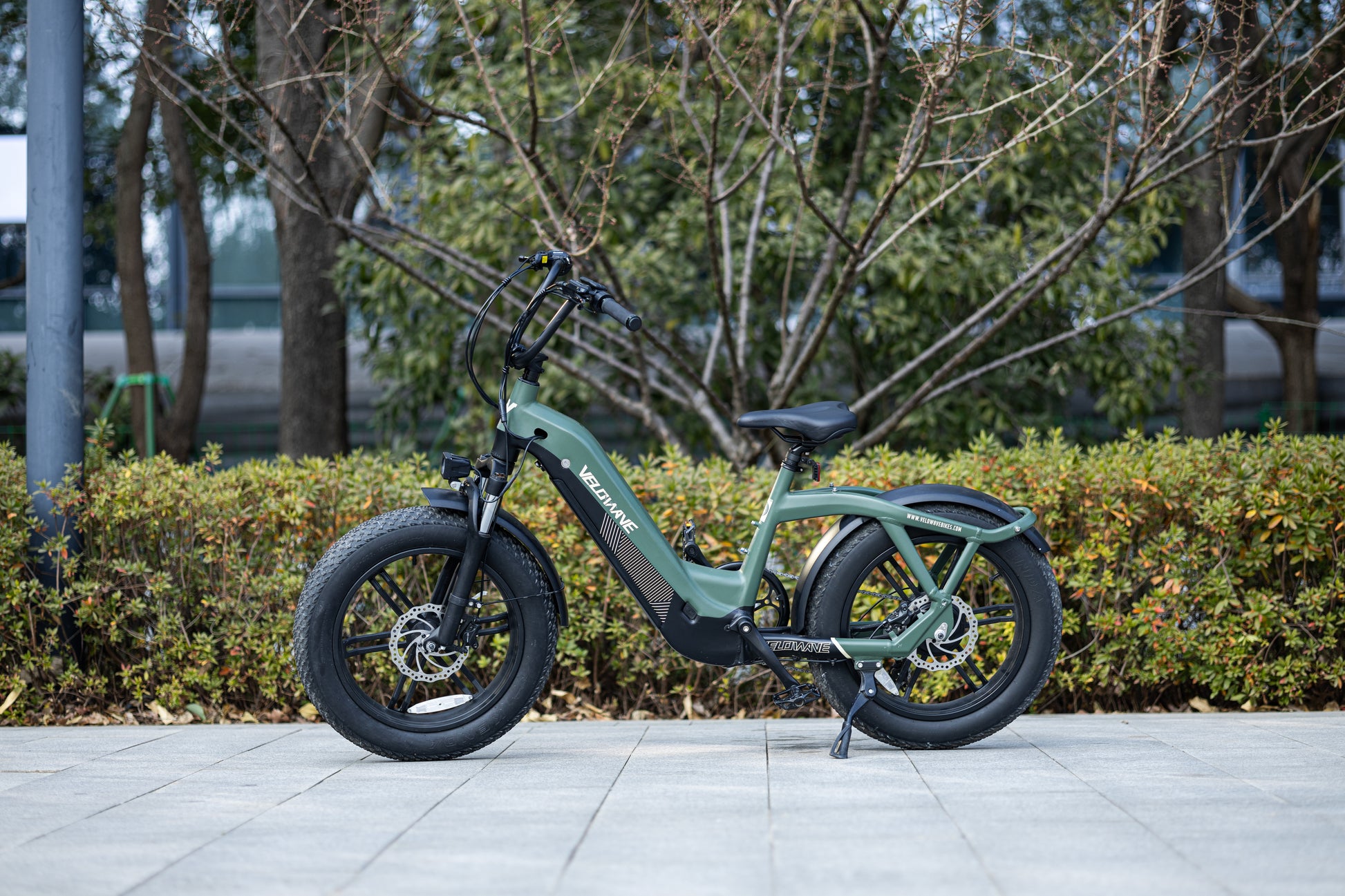

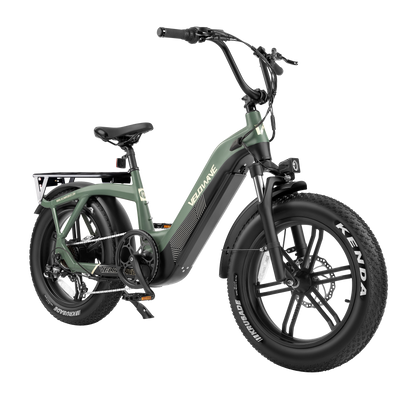

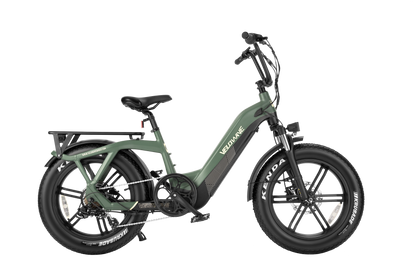

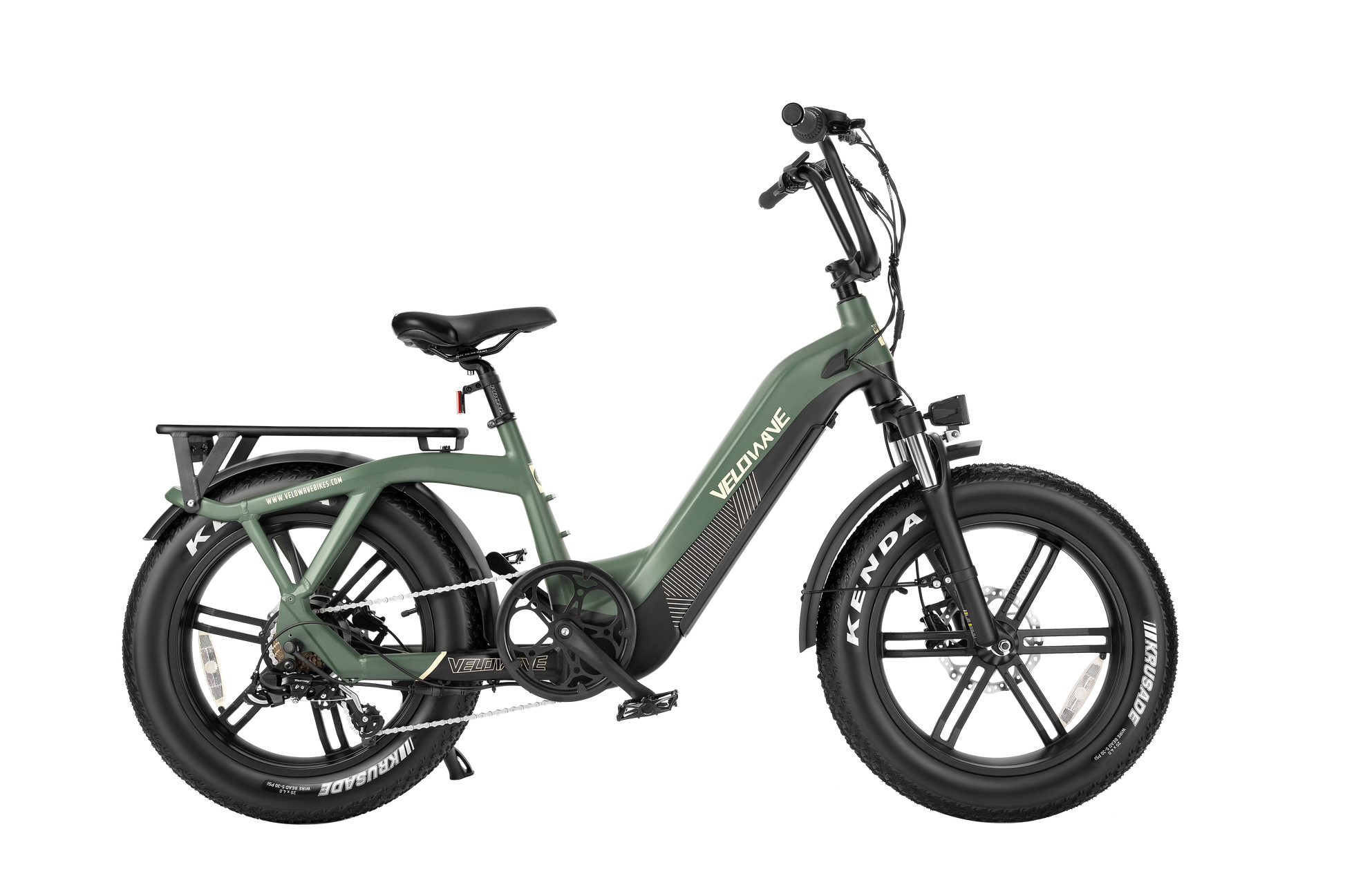

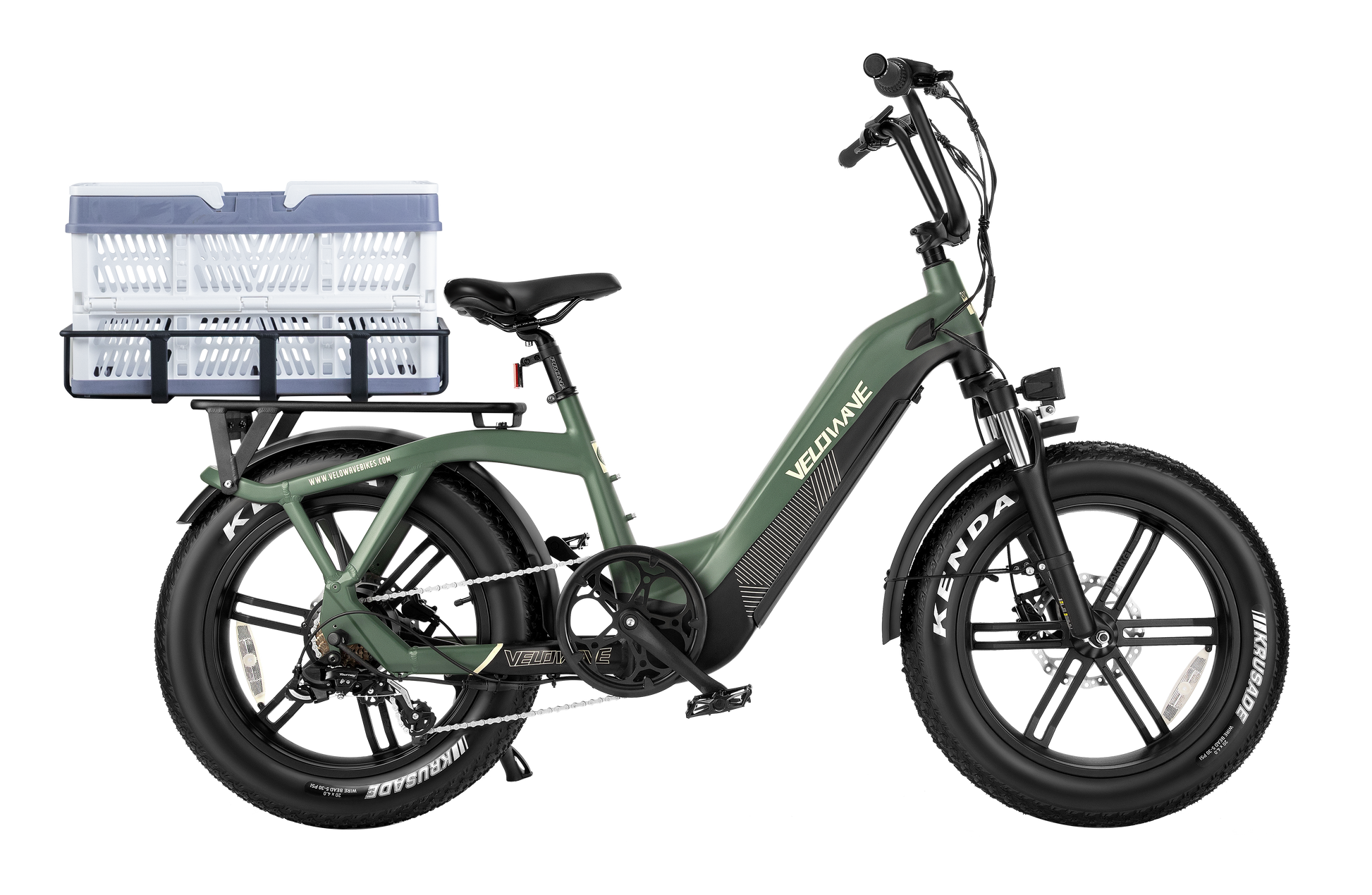

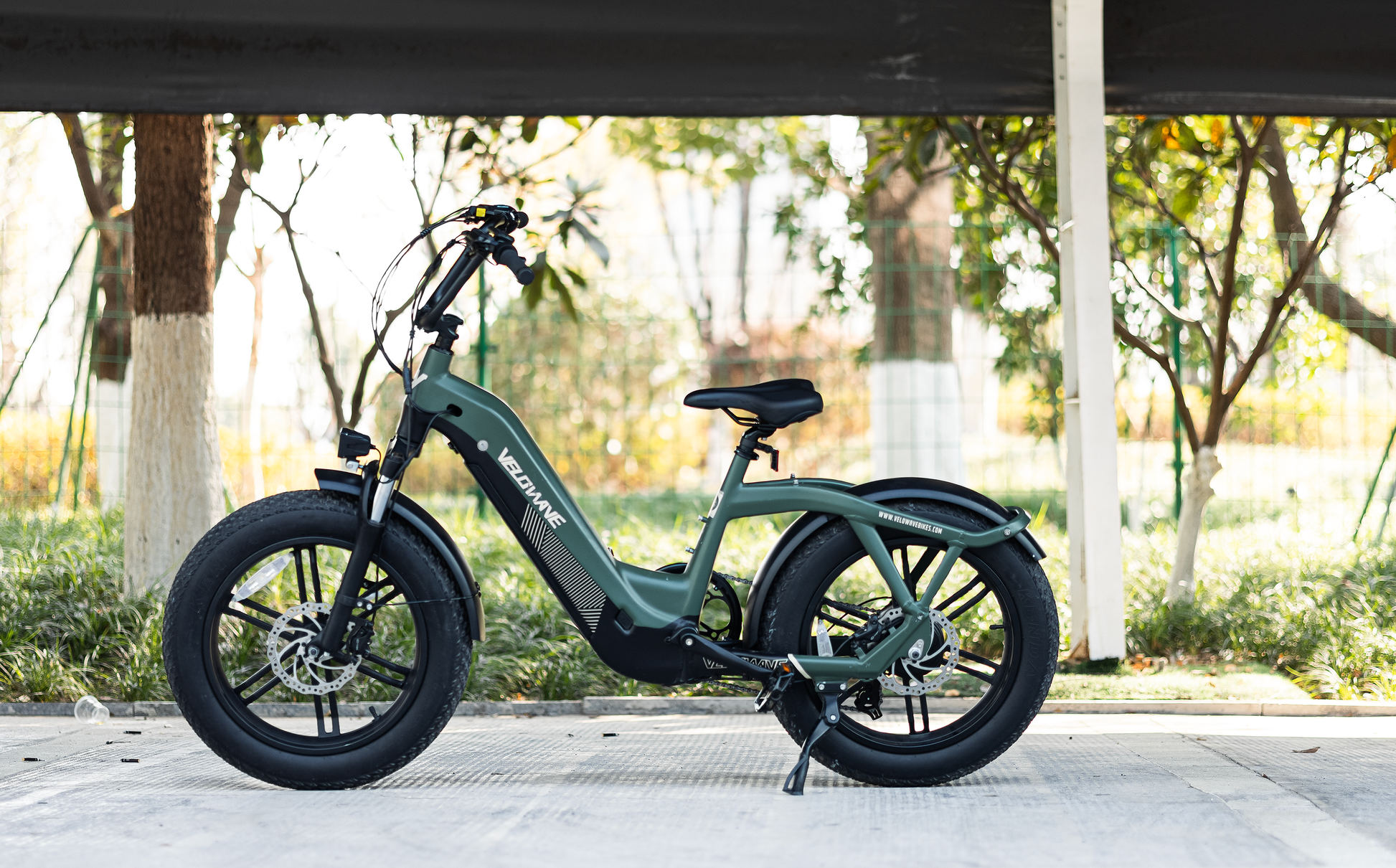

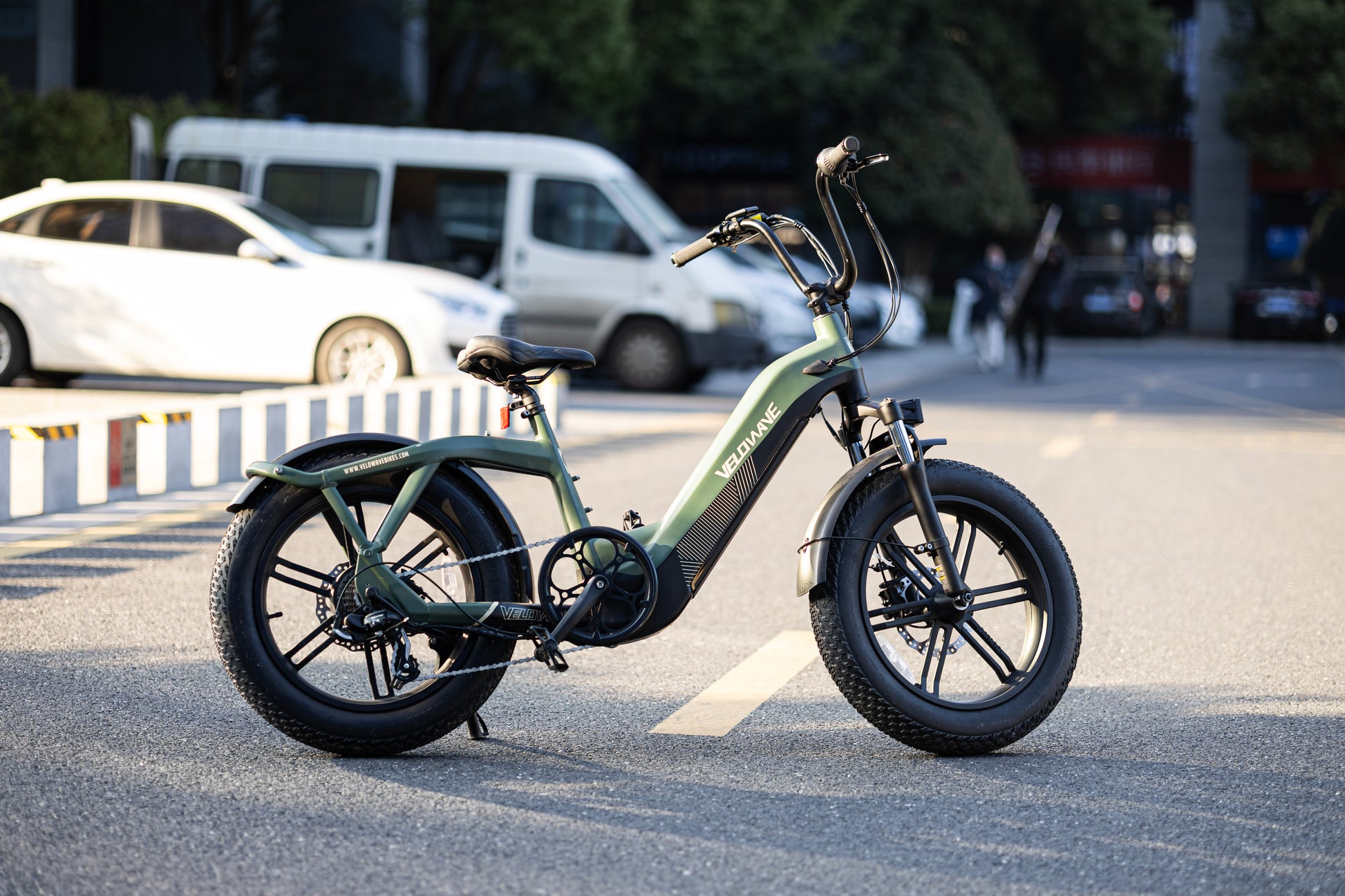

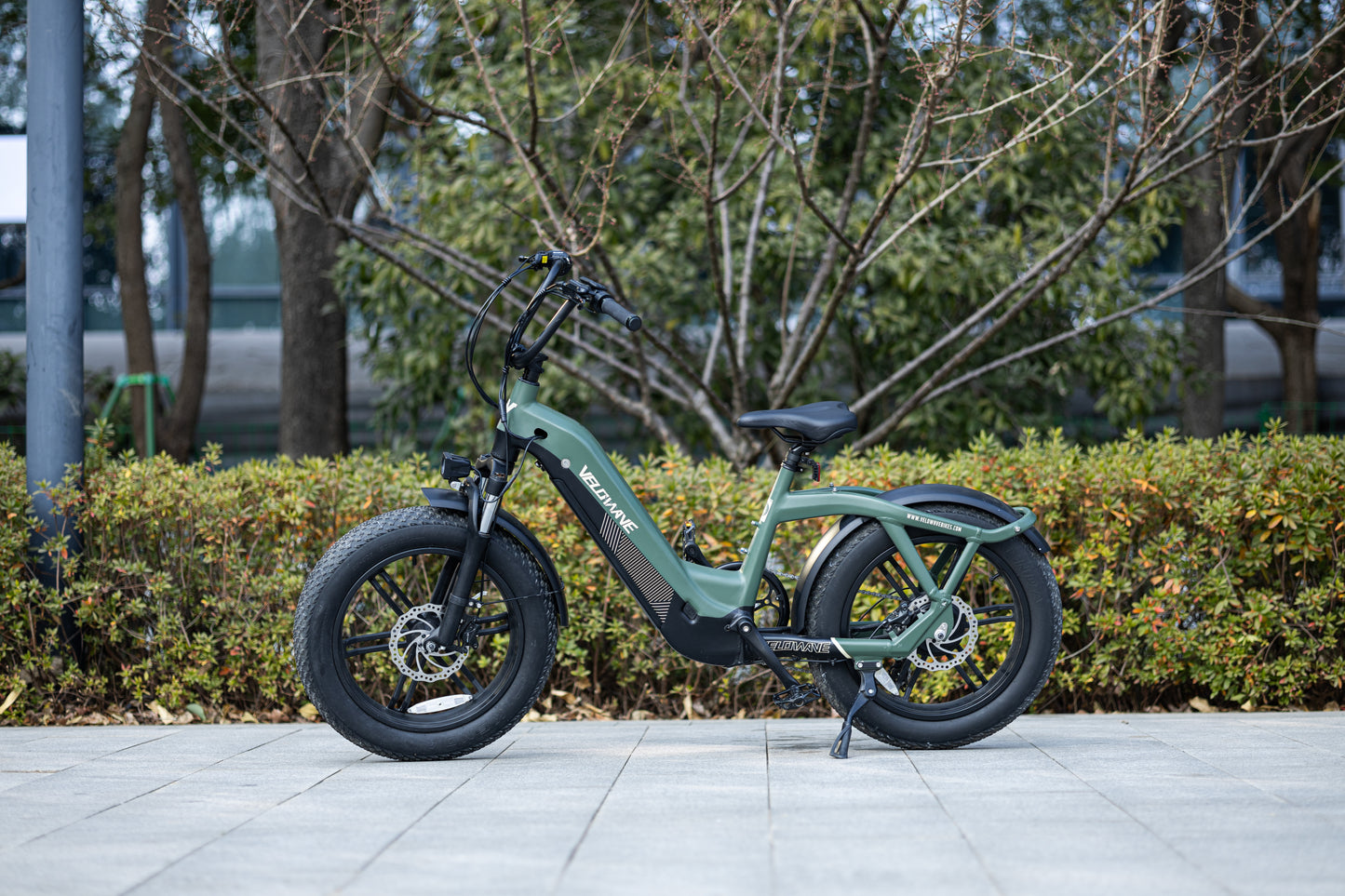

The Velowave Pony Compact Step-Thru Electric Bike is a powerful fat tire ebike built for adventure and daily commuting. With a step-thru frame for easy access, a 750-watt electric bike motor for speed and stability, and 20"x4" fat tires for superior grip, it's ready for any terrain. Its 48V/15Ah LG battery provides up to 40 miles per charge, making it the perfect adventure ebike for city streets and off-road trails alike.
Key Features
Fat Tire Design

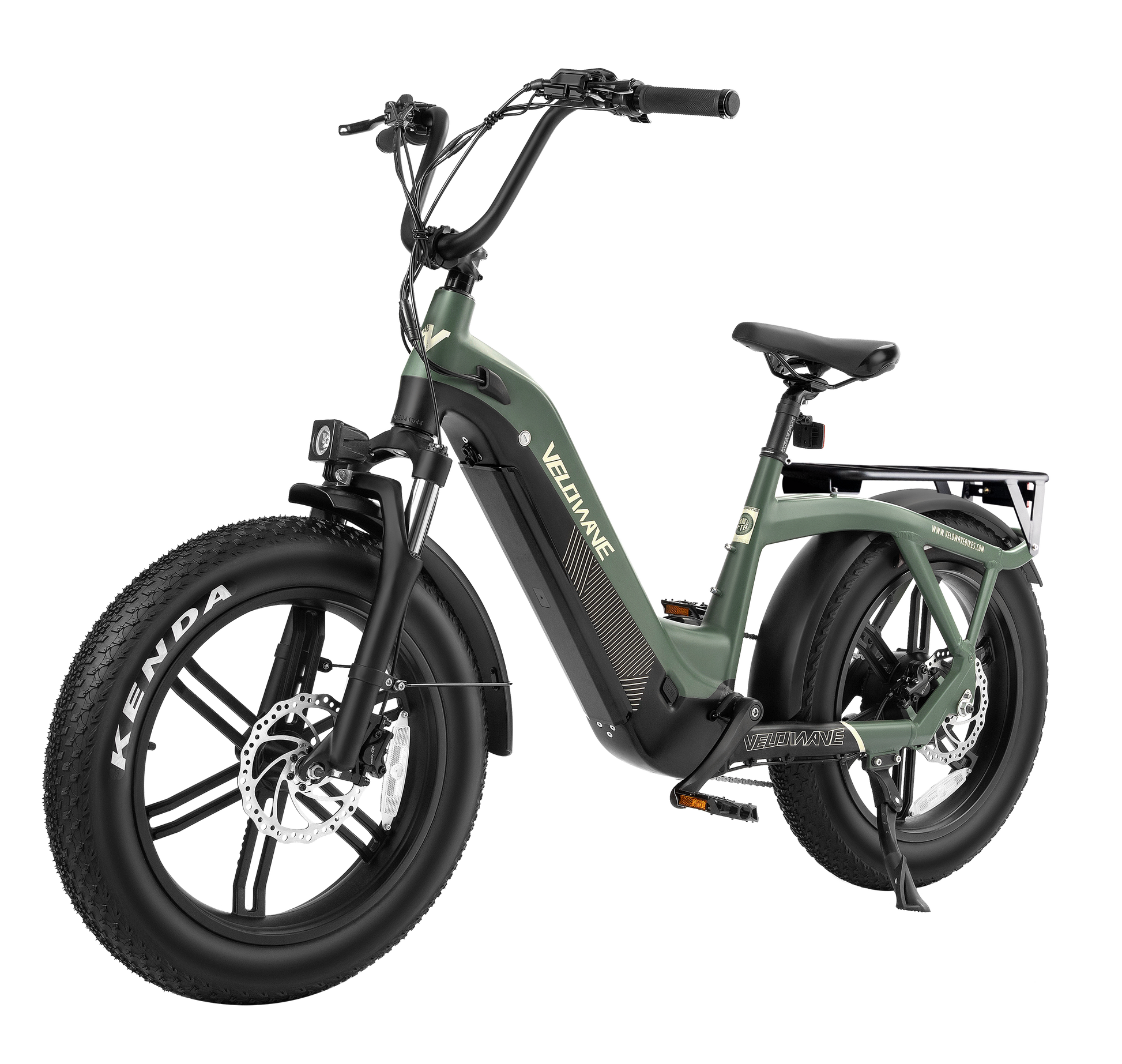

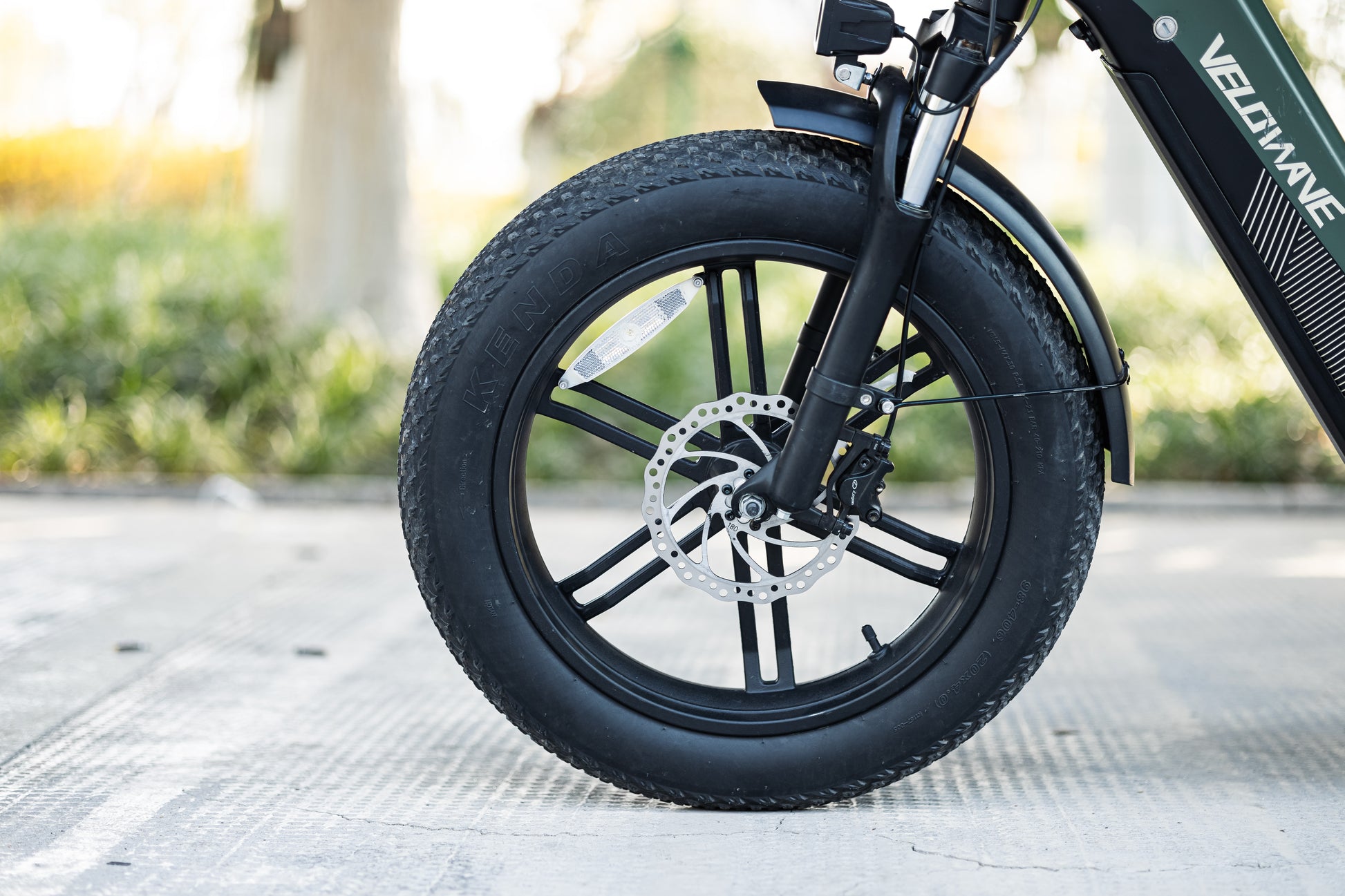

The 20"x4.0" Kenda Fat Tires provide superior traction and stability, making this fat tire ebike suitable for sand, snow, gravel, and rough trails.
750W BAFANG Motor
This 750-watt electric bike is equipped with a high-speed BAFANG geared motor, ensuring powerful acceleration and a smooth ride at peak speeds.

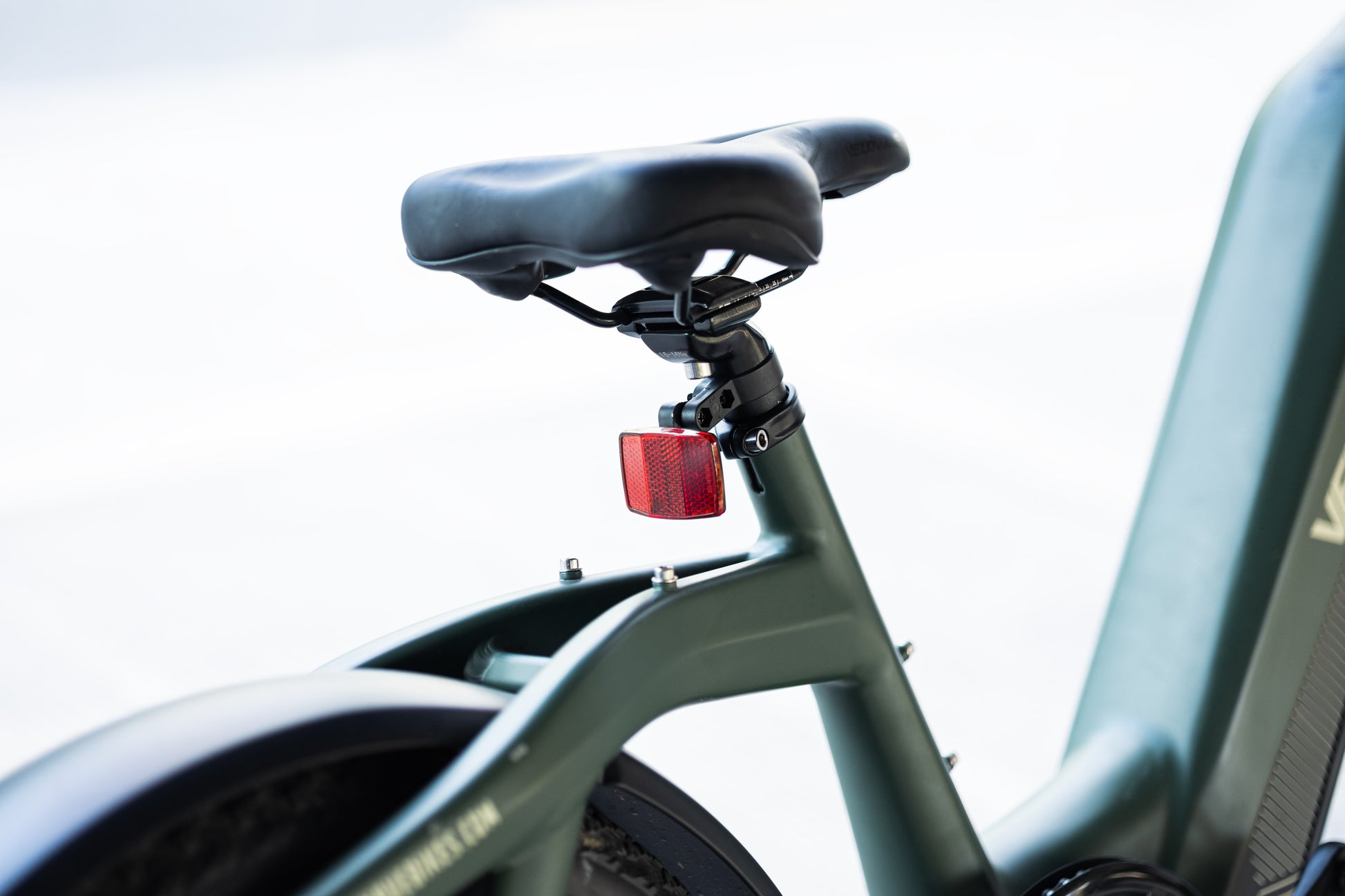

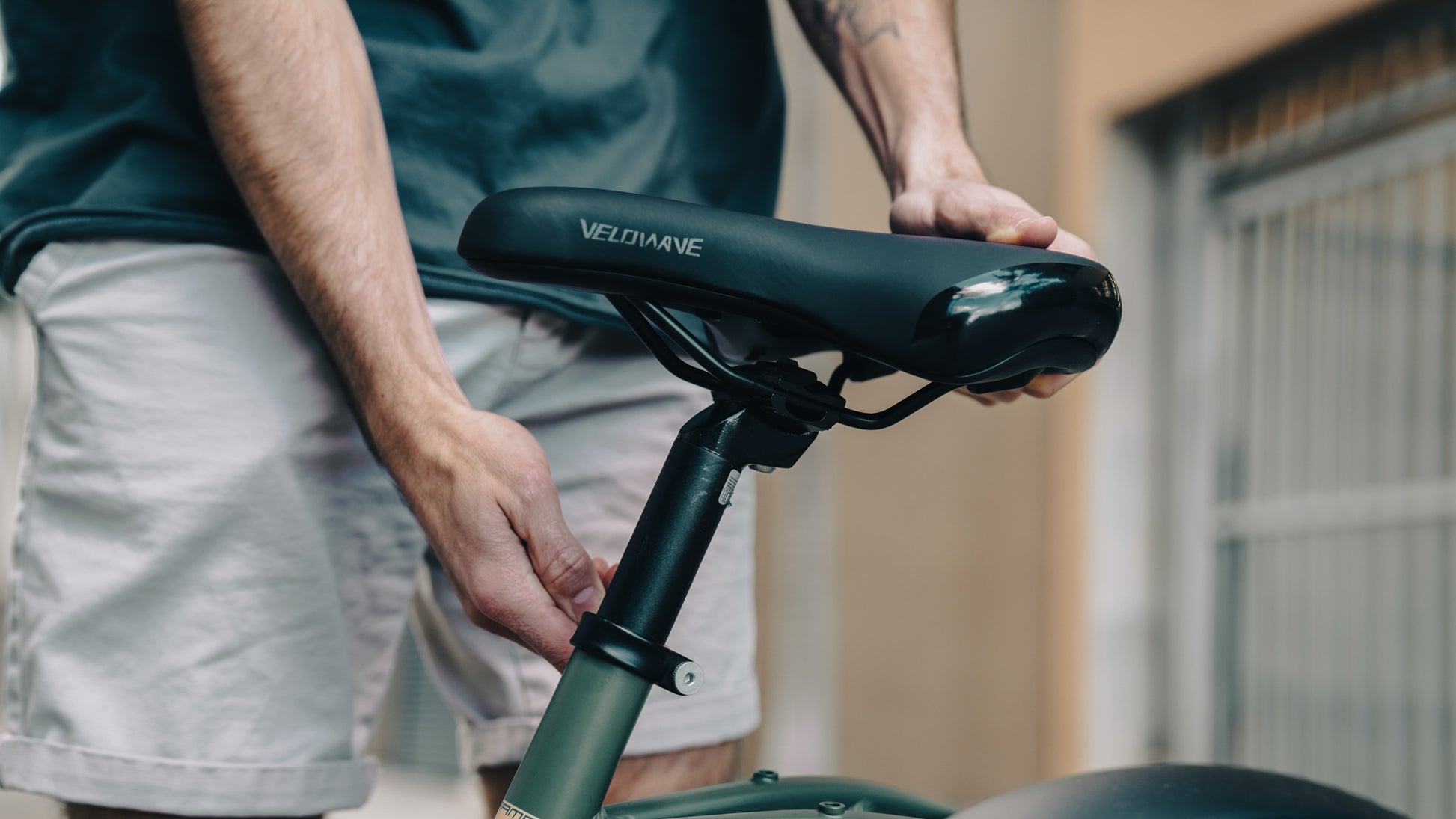

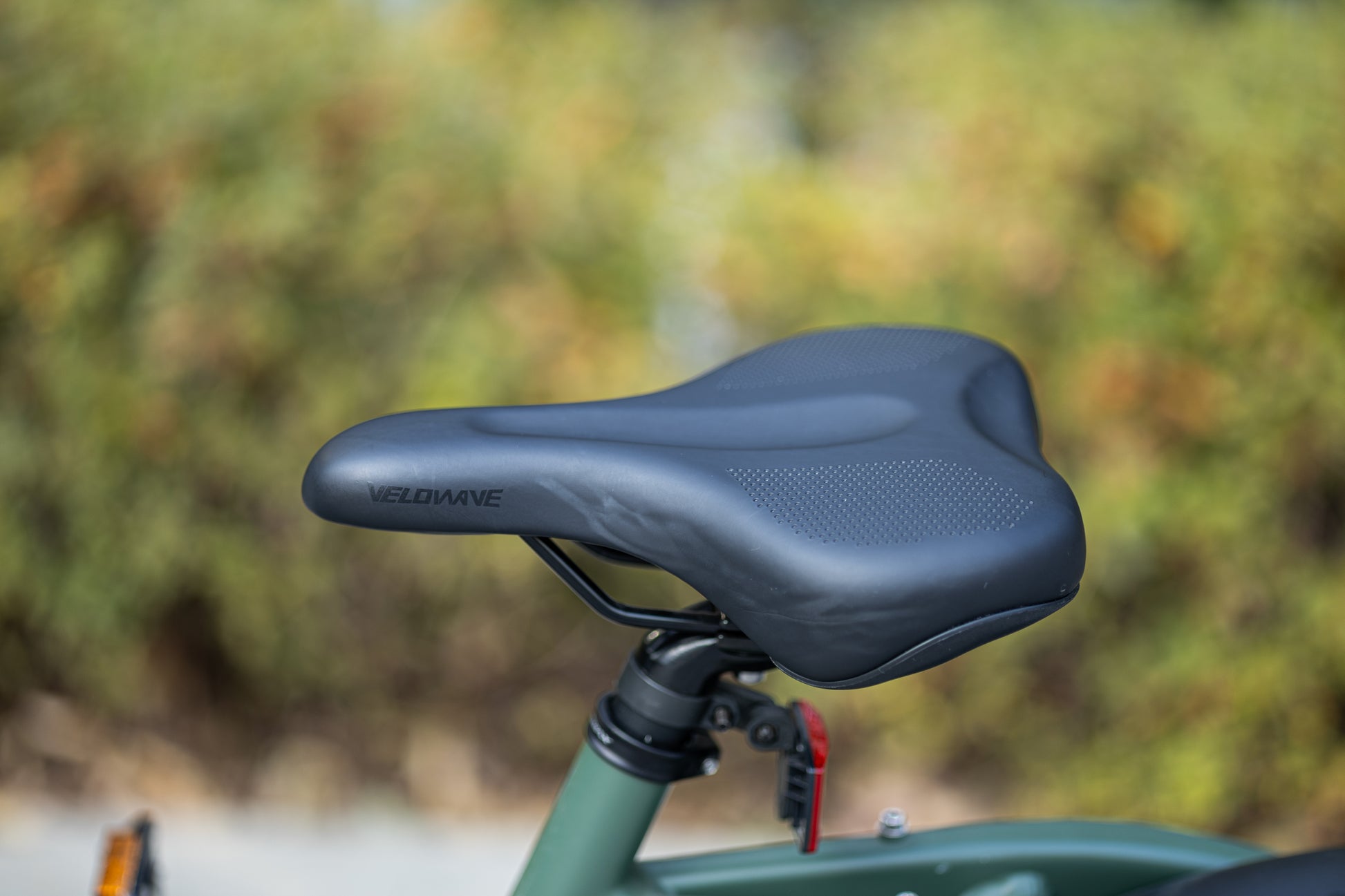

Comfortable Wide Saddle
Featuring a widened and enlarged seat pad for enhanced comfort during long rides, focusing on every detail for an enjoyable riding experience.

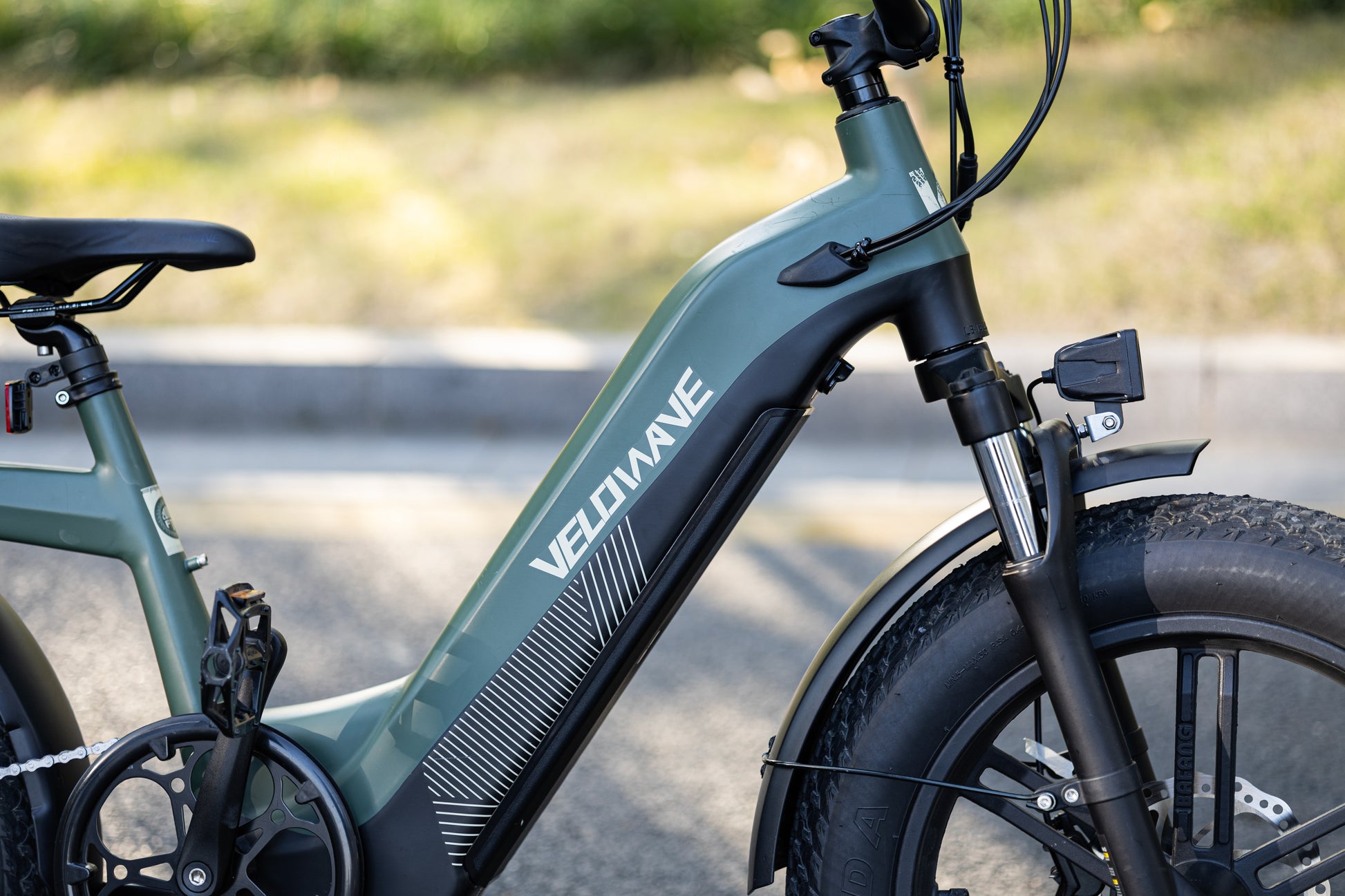

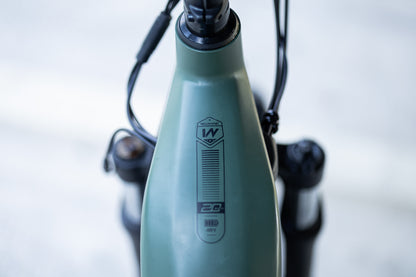

Durable Aluminum Frame
Built with aerospace-grade aluminum, this adventure ebike balances durability with lightweight performance for every ride.
Specs & Size
| Frame Size | Standard (mm) |
|---|---|
| Handlebar Height | 1130mm |
| Reach | 440mm |
| Head Tube Length | 173mm |
| Seat Tube Length | 349mm |
| Standover Height | 670mm |
| Wheelbase | 1131mm |
| Total Length | 1715mm |
| Seat Height Min/Max | 775/990mm |
General
- Class: Class 2 (Ebikes can go up to 25mph with pedal assistance)
- Max Speed: 25 MPH by pedal, 20 MPH by throttle
- Range: Avg. 40 Miles on PAS, up to 40 Miles on Level 1, 23 Miles on Throttle
Frameset

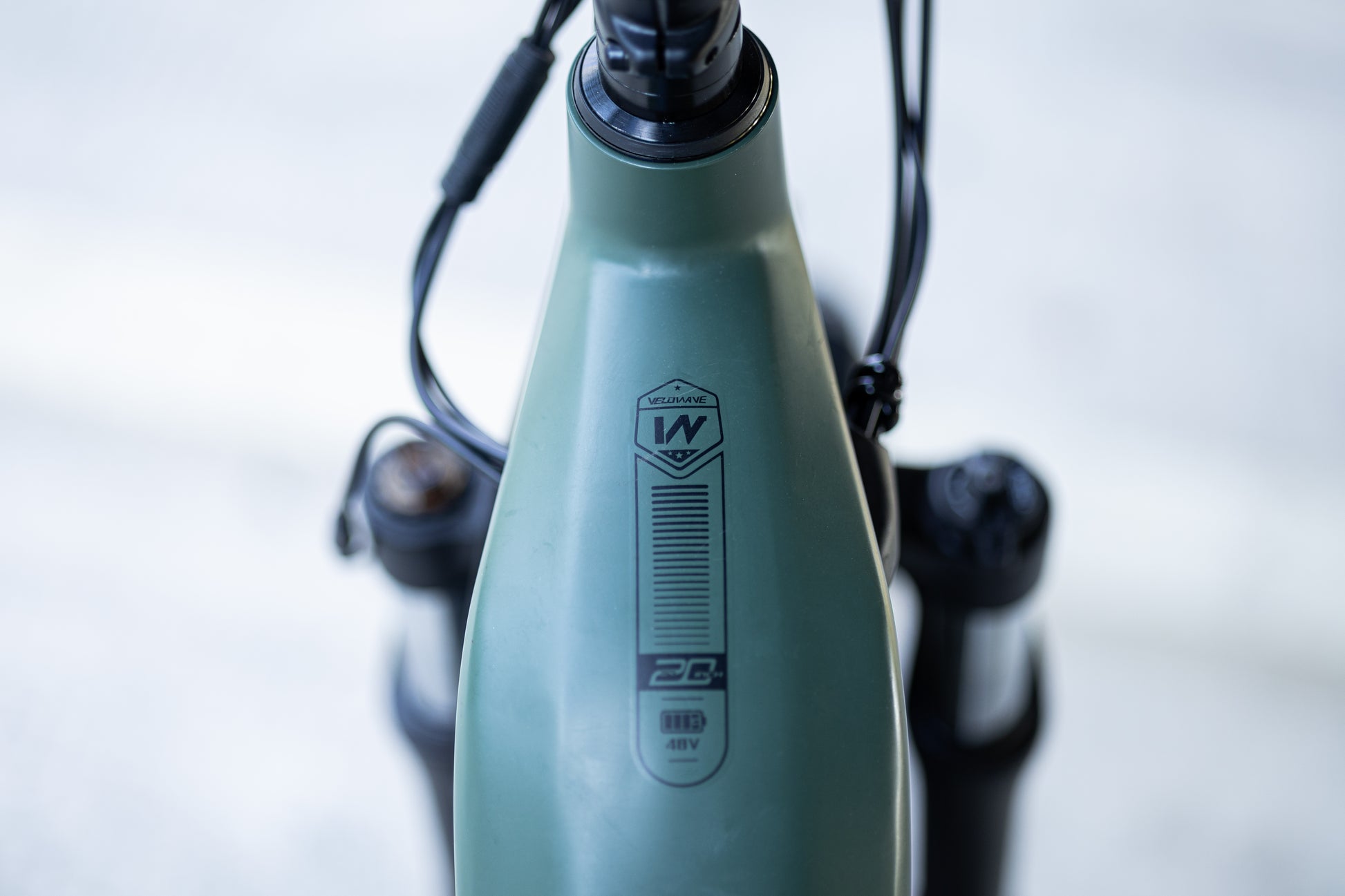

- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork: Hydraulic Suspension Fork
- Fenders: Included
Wheels
- Rim: Aluminum 20 x 3.0
- Tire: Kenda Fat Tires 20" x 4.0"
E-System
- Battery: 48V 15Ah, 720Wh, LG 21700 Cells
- Charger: Input 100-240V~, 2.8A, 50-60Hz. Output 54.6V 2.0A, UL Listed

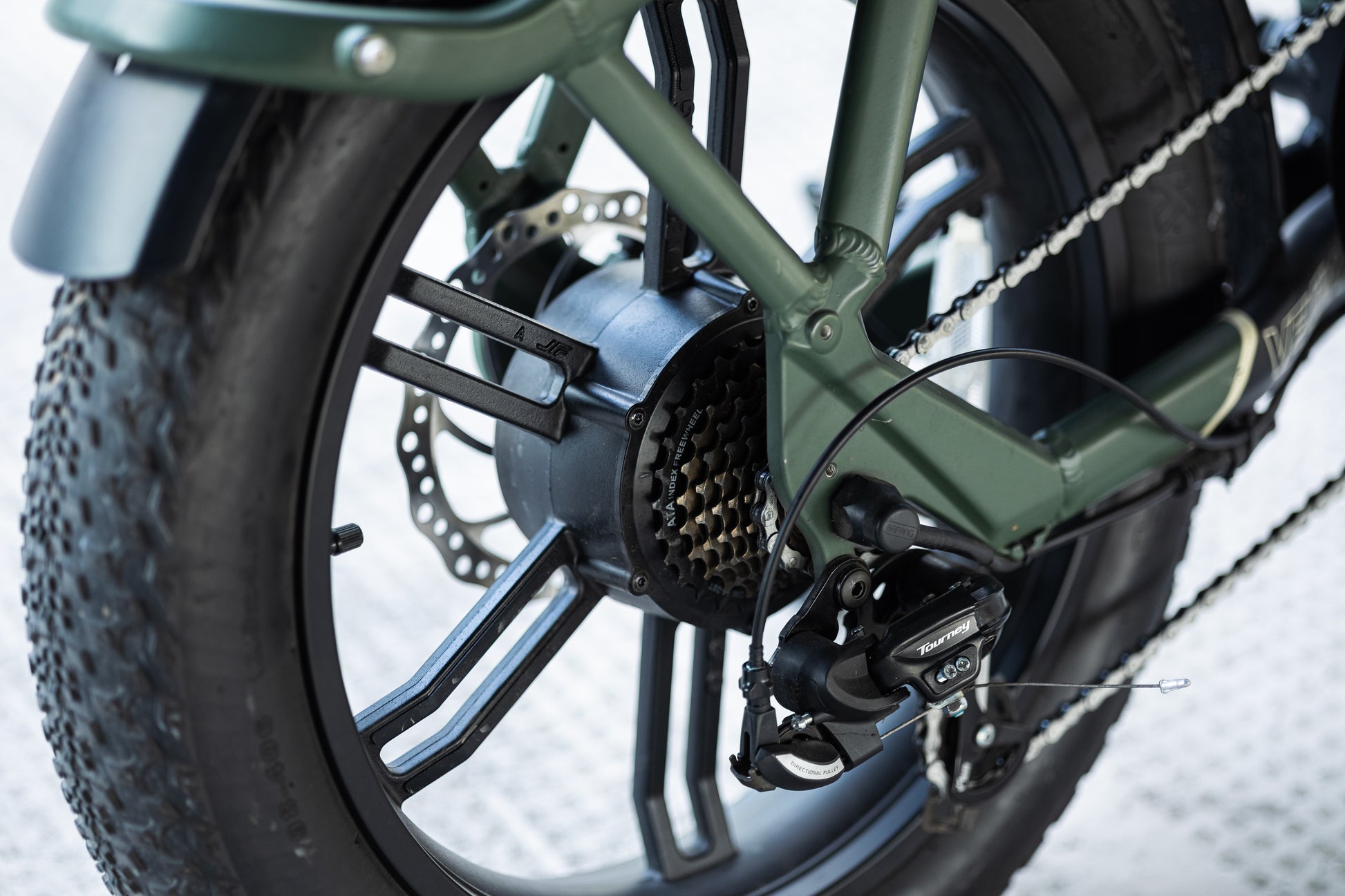

- Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80Nm
- Controller: 48V 25A Peak

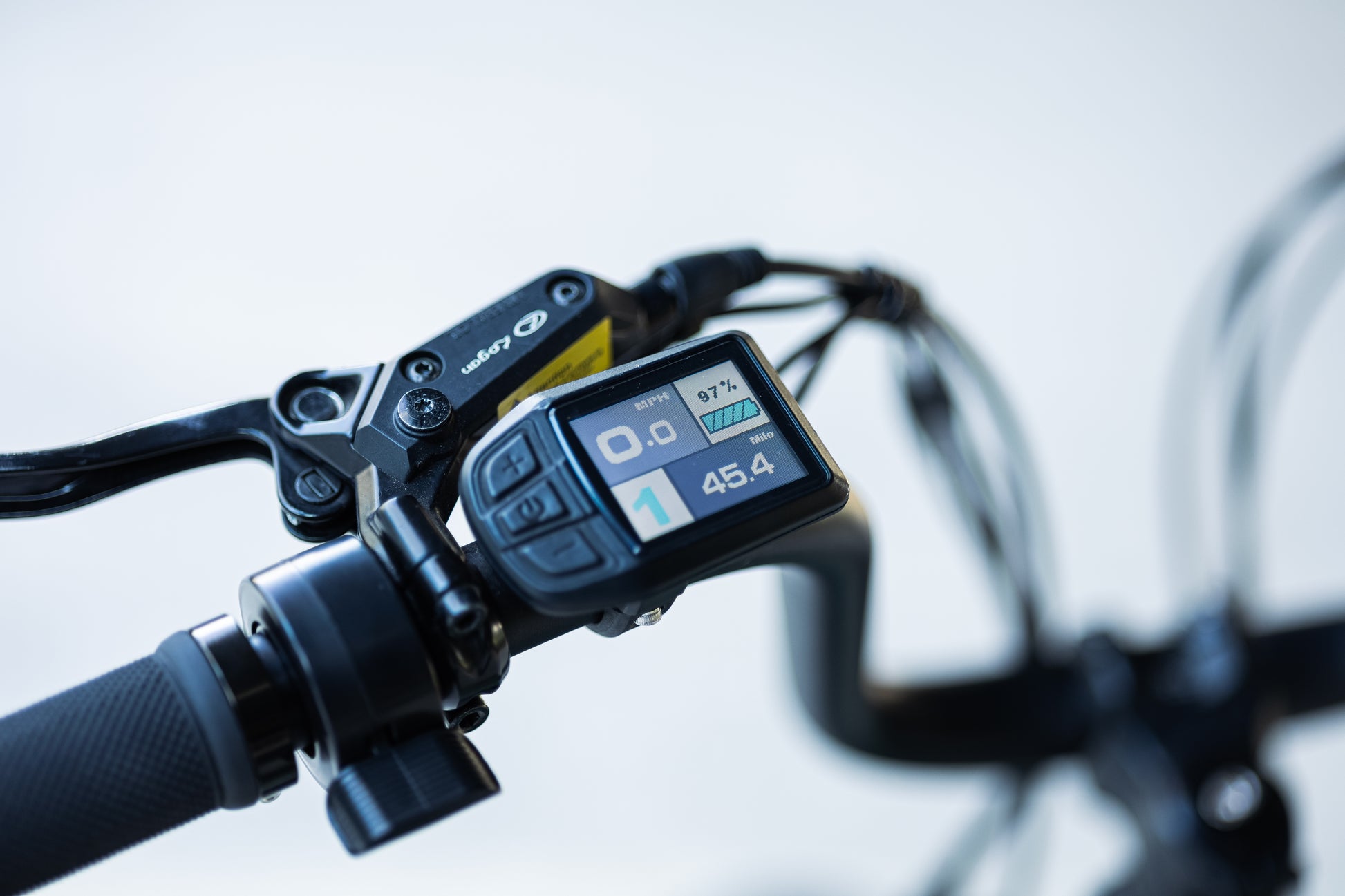

- Display: Multifunctional Color-Screen Display
- Pedal Assist: Speed Sensor

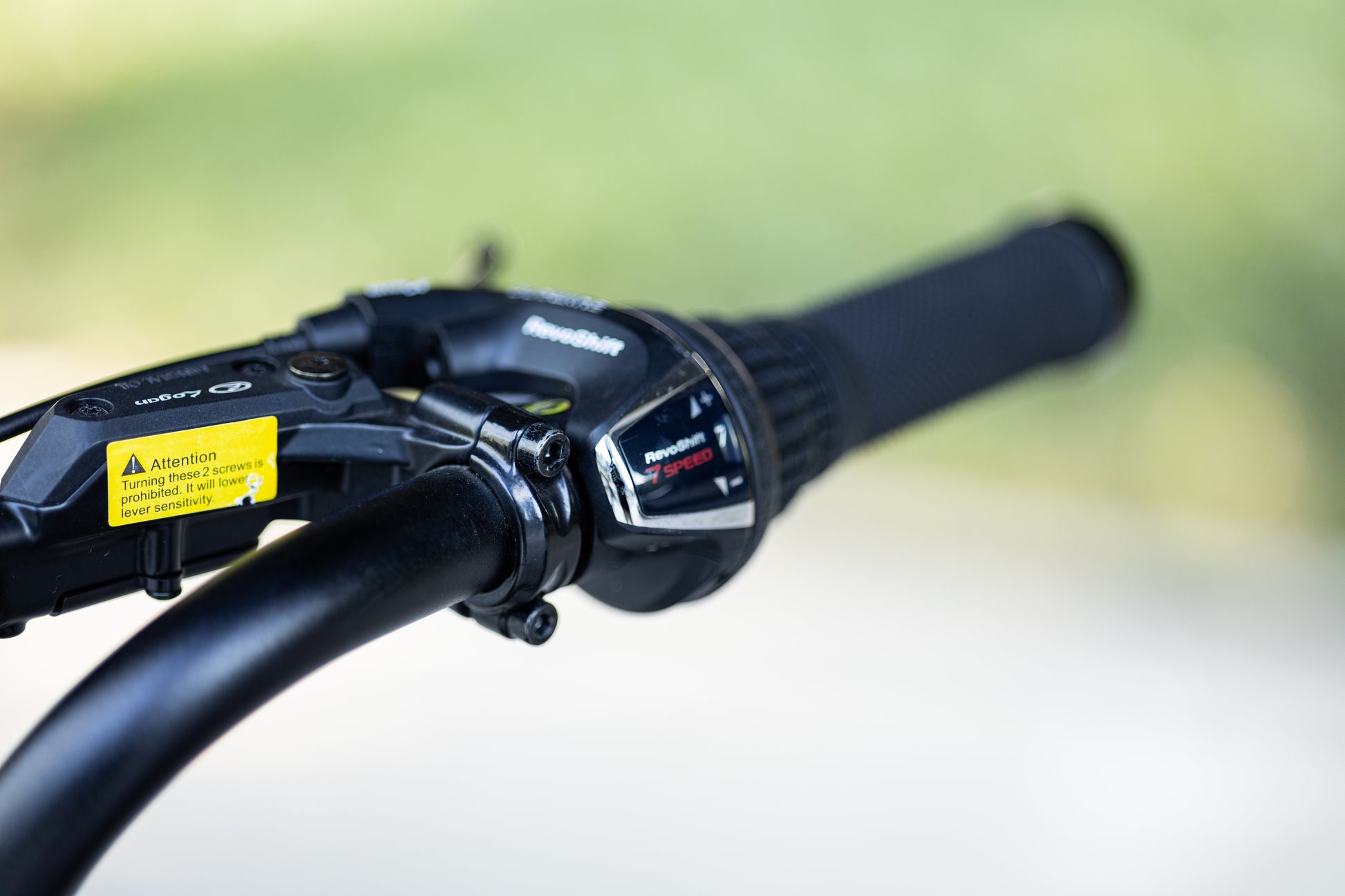

- Throttle: Thumb Throttle

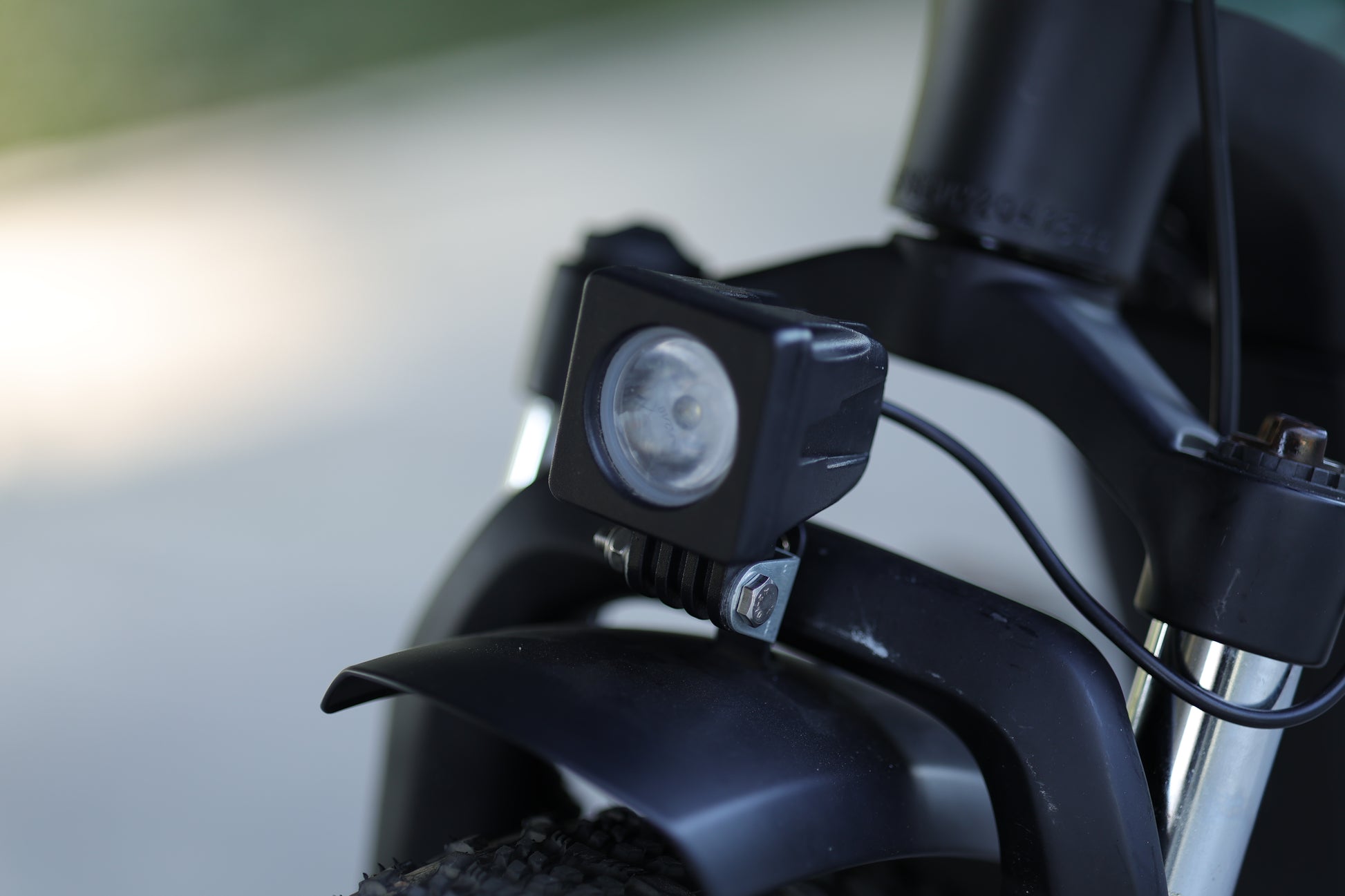

- Front Light: 48V 10W LED Light
Drivetrain
- Shifter: Shimano 7-Speed

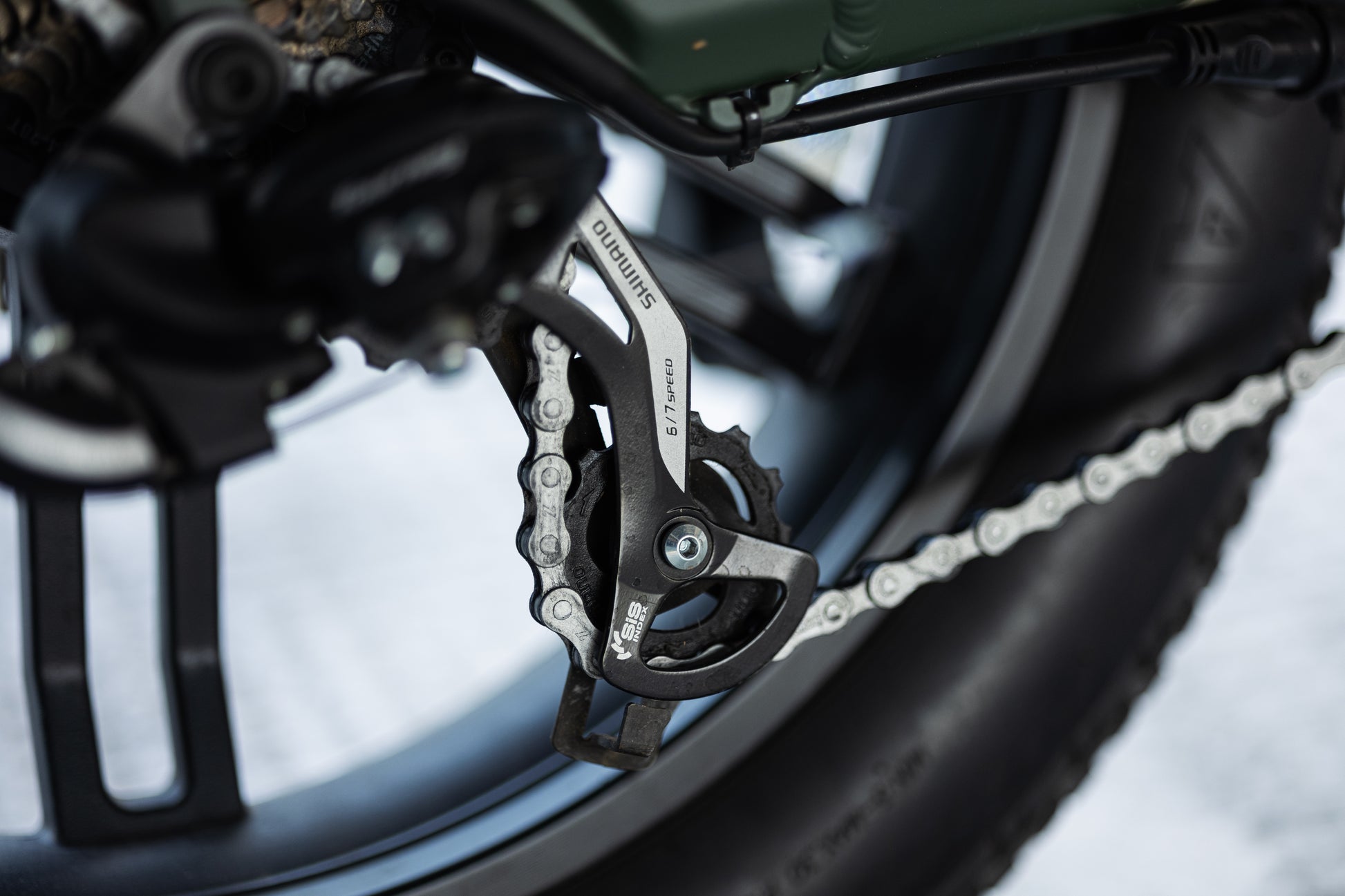

- Rear Derailleur: Shimano Long Cage

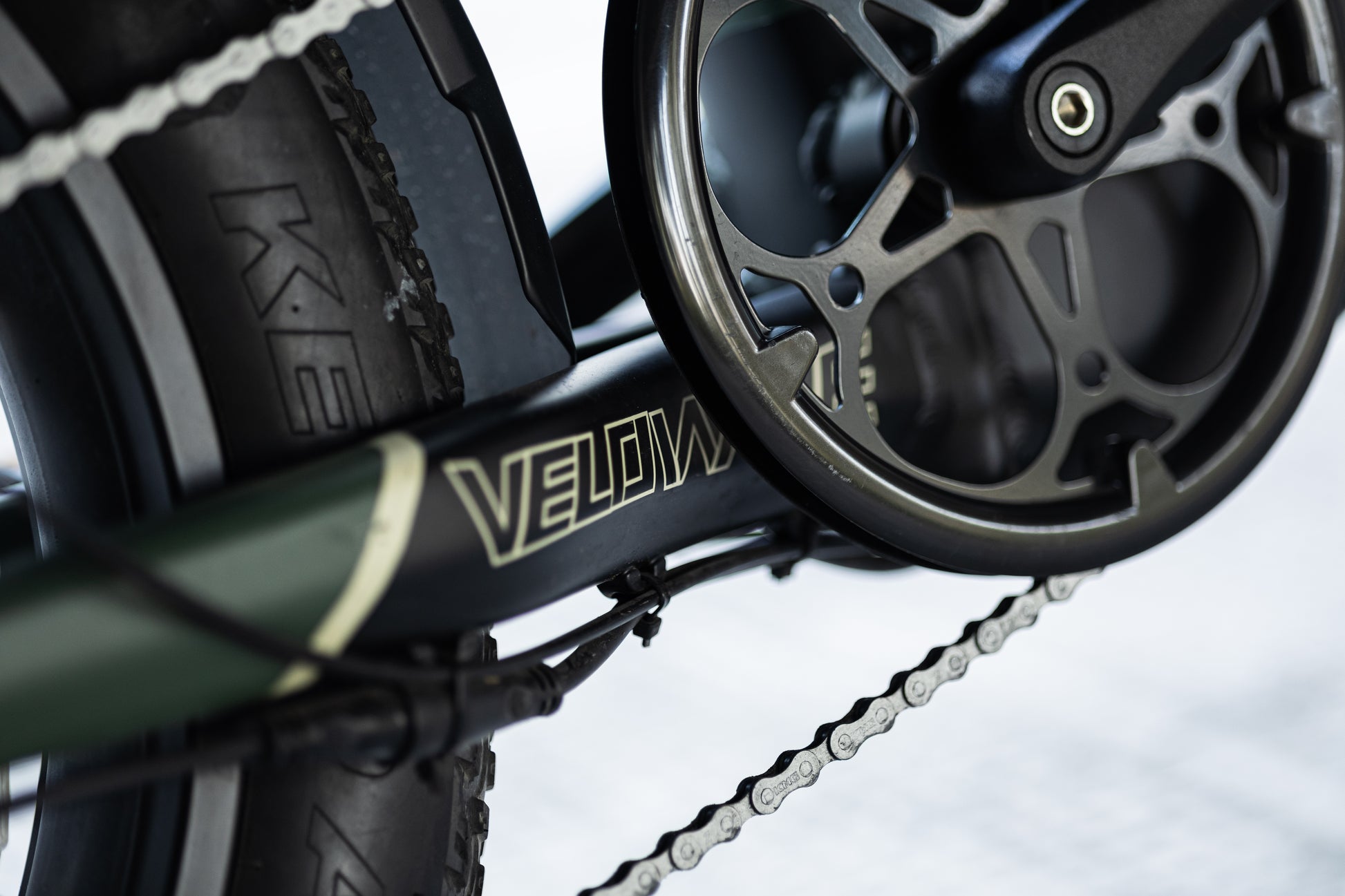

- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: 7-Speed

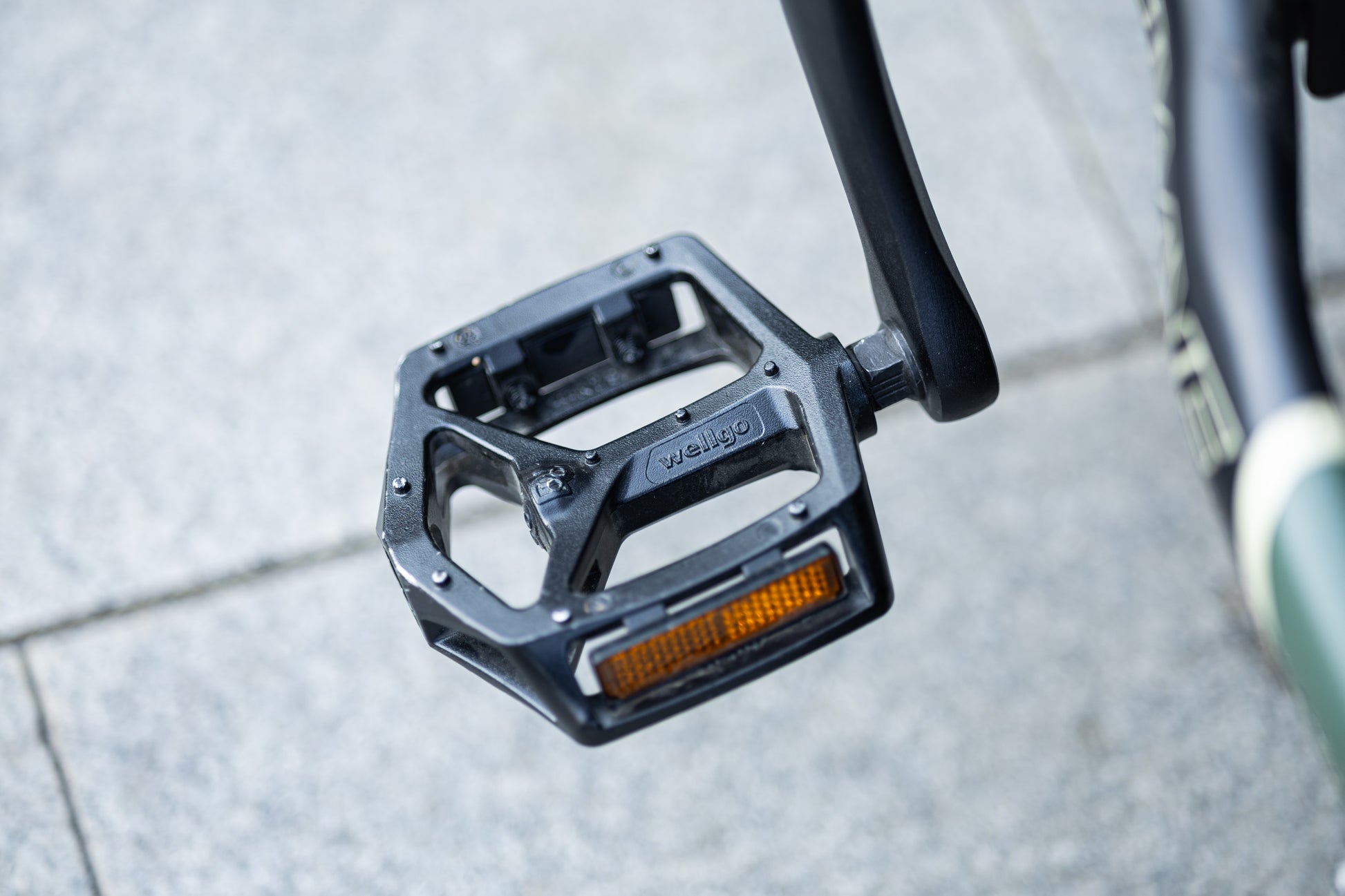

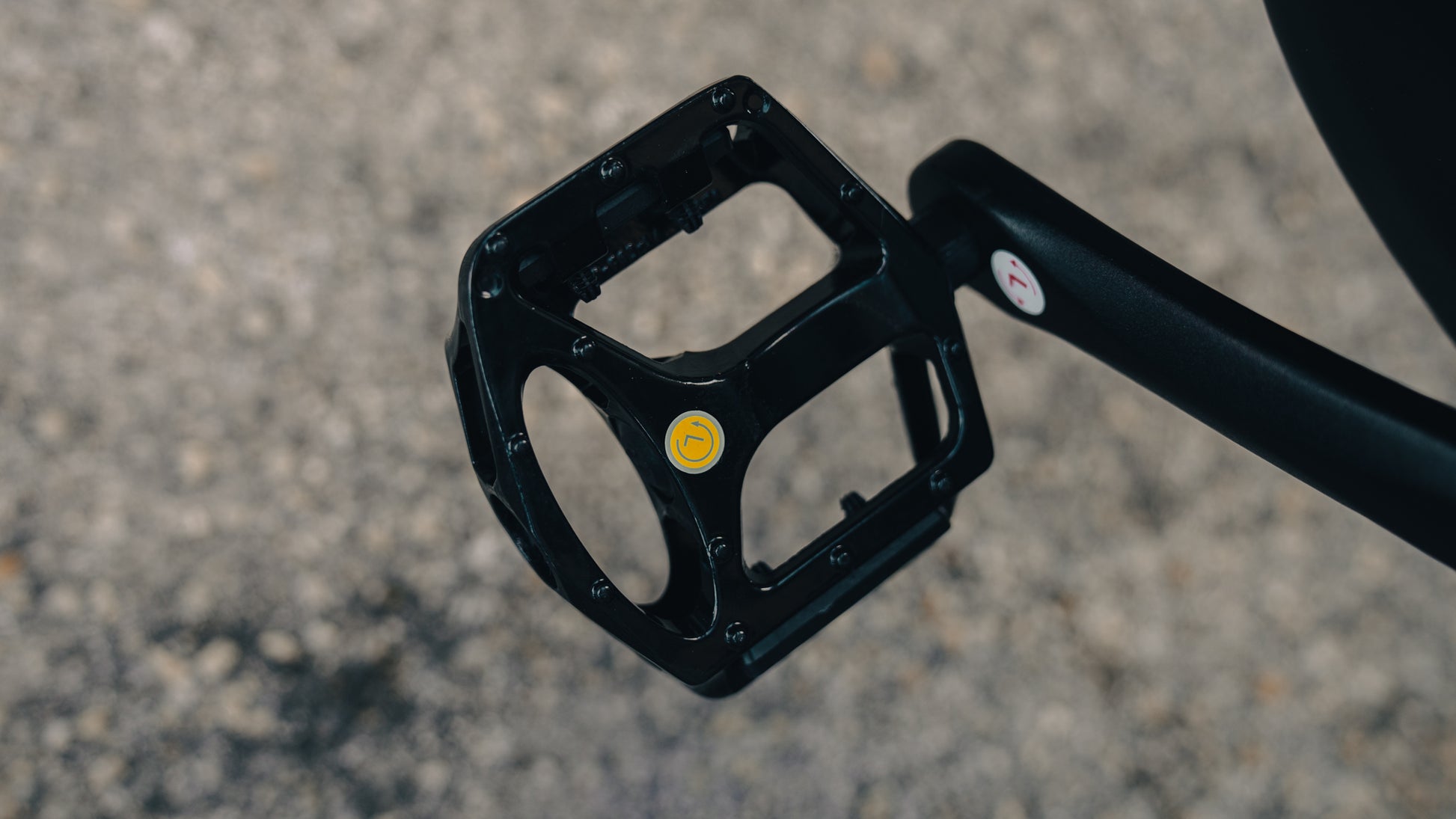

- Pedals: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar: Alloy, 750mm width / Aluminum Ø31.8mm, Width 710mm
- Grips: Nylon Lock-on
- Brakes: Front & Rear Hydraulic Disc Brakes, 180mm rotor, 1.9mm thick

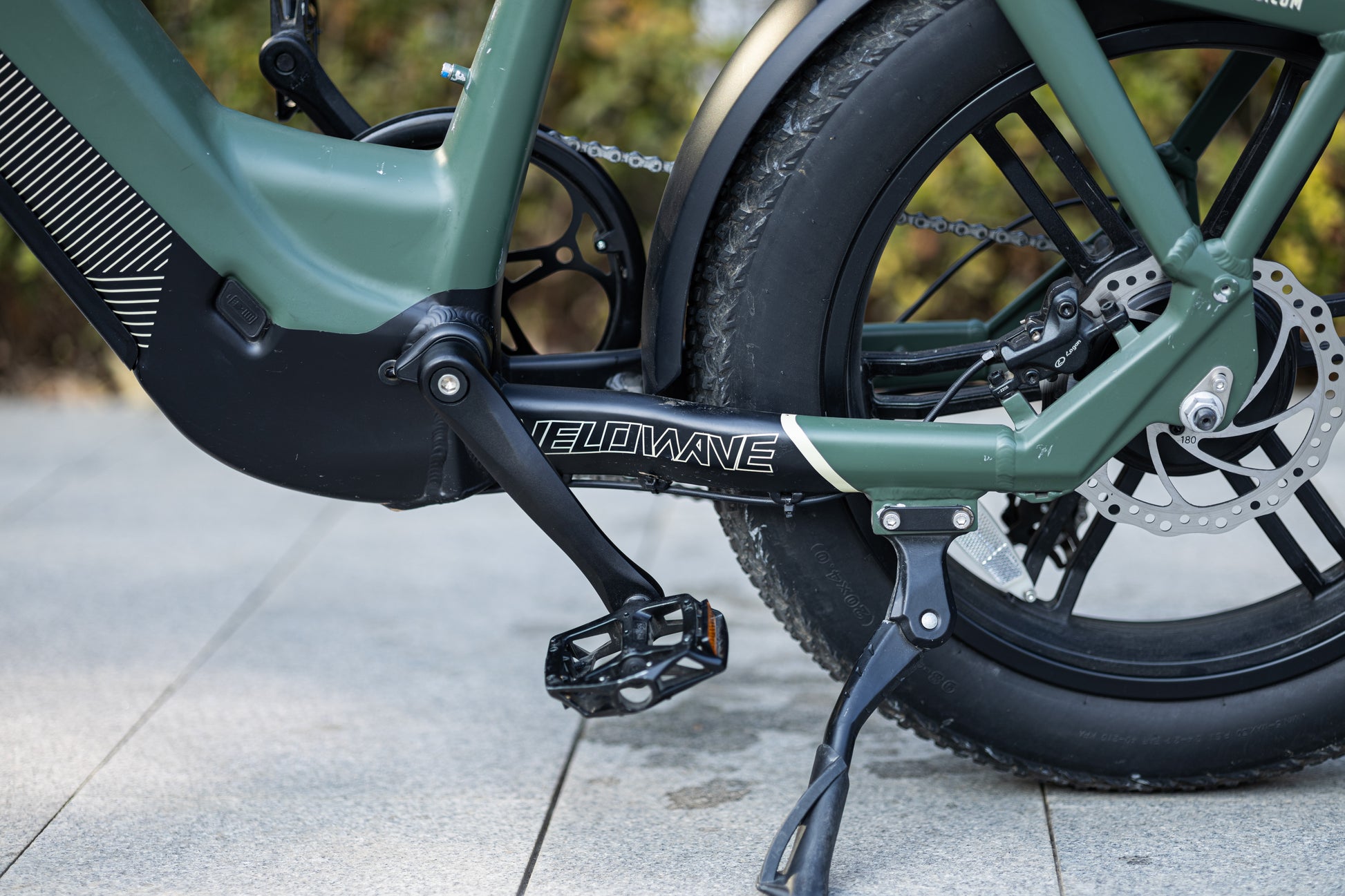

- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, Ø30.4x350mm
Weight
- Net Weight: 36kg / 79.4lb
- Gross Weight: 45.6kg / 100.5lb
- Battery Weight: 4.2kg / 9.3lb
- Weight Limit: 150kg / 330lb Payload Capacity
Size
- Product Size: 1720 x 1130 x 750mm

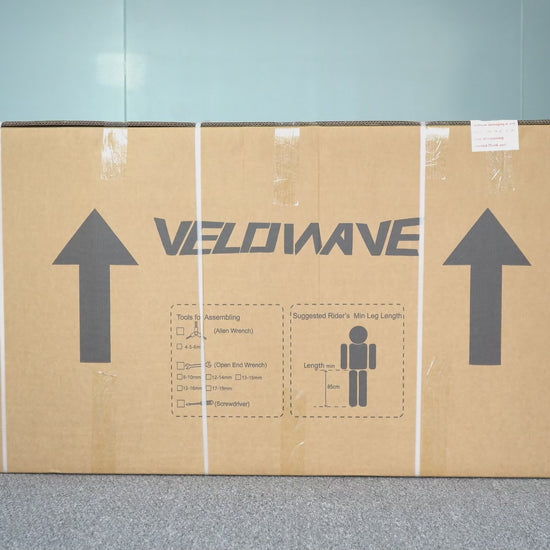

- Packing Size: 1450 x 320 x 800mm
