Effortless Riding Meets Cutting-Edge Technology

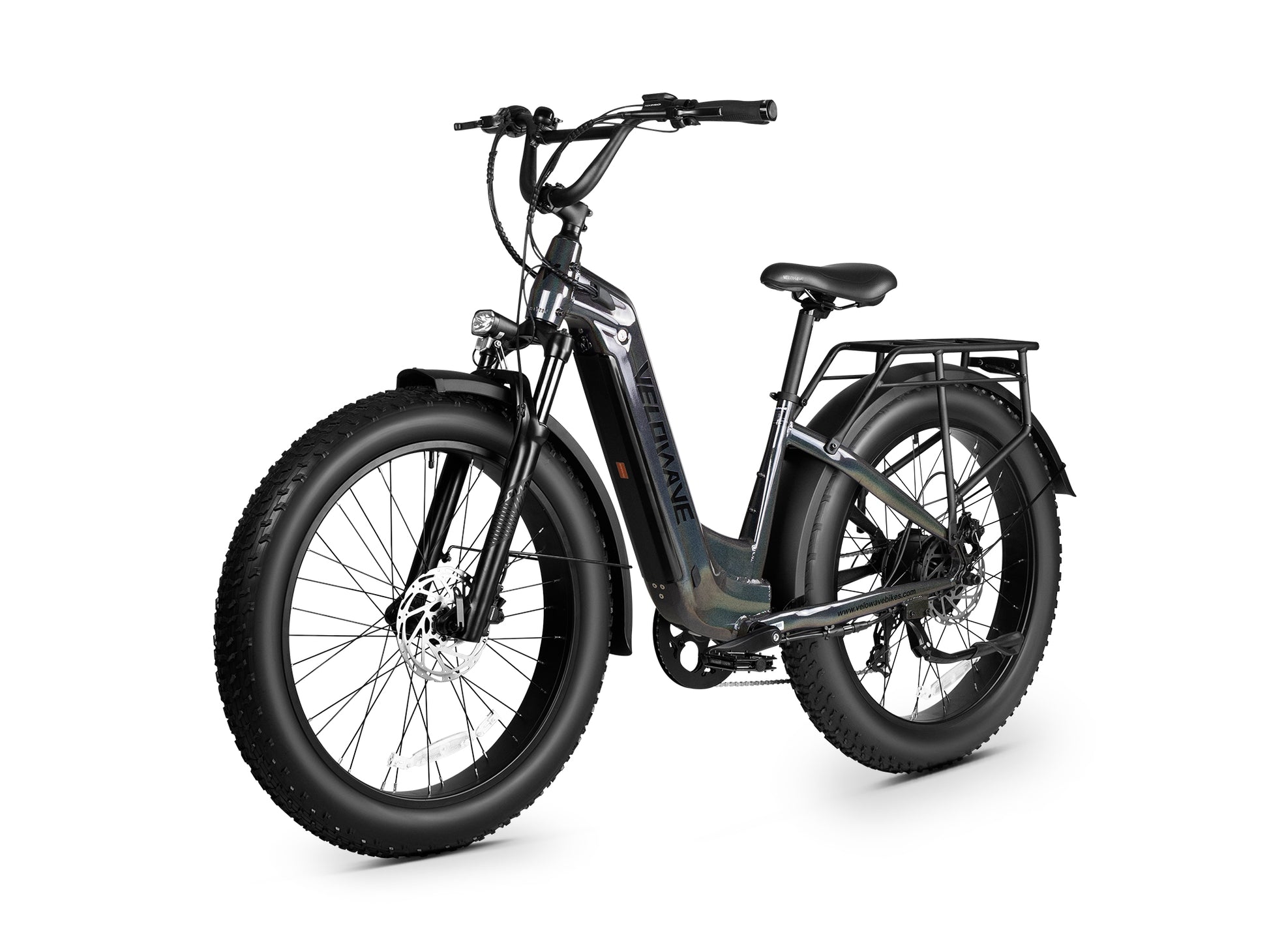

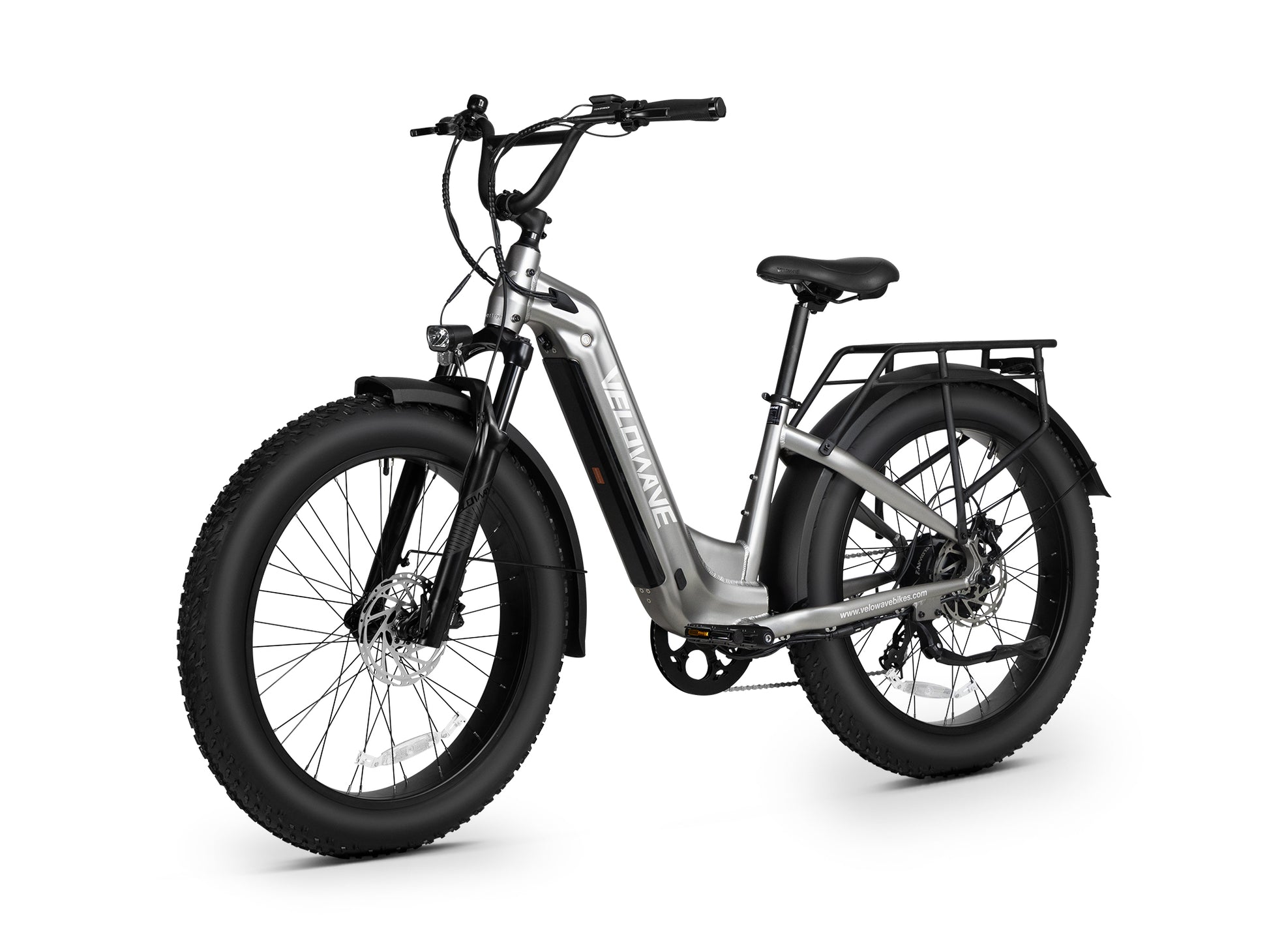

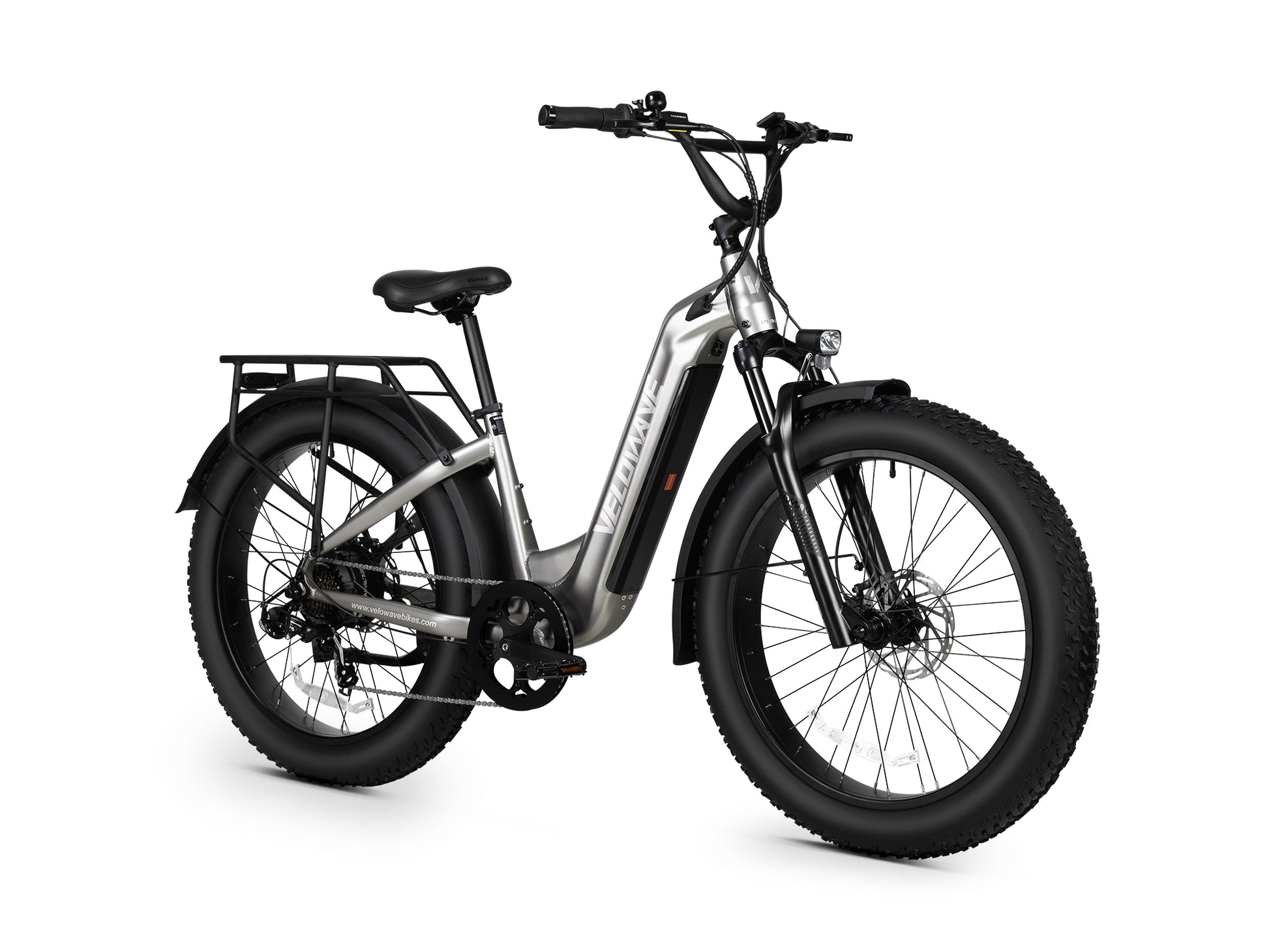

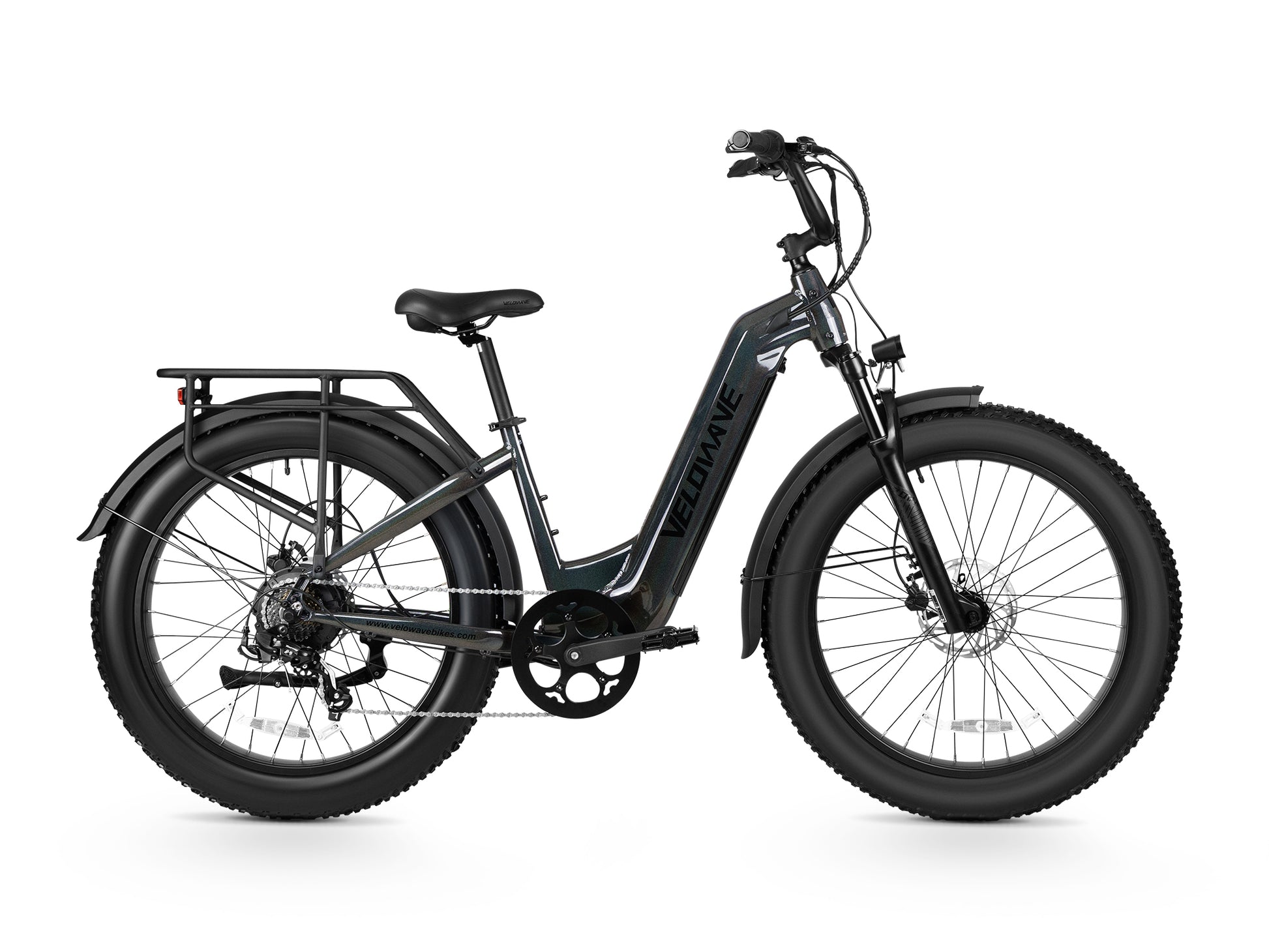

Discover the perfect blend of comfort, power, and advanced technology with the Ranger Step-Thru 3.0. Designed for smooth, easy access and a seamless riding experience, this bike is built to conquer both daily commutes and thrilling off-road adventures. Equipped with a responsive torque sensor and a robust 750W motor (peaking at 1000W), the Ranger Step-Thru 3.0 delivers effortless performance across all terrains.
Key Features
💪 Torque Sensor
The torque sensor measures your pedaling force, allowing the motor to deliver power proportional to your effort for a smoother, more responsive ride. Whether climbing hills or cruising flat terrain, it seamlessly adjusts to provide intuitive assistance and confident control on all terrains.
🛡️ Durable Frame
Crafted from high-quality 6061 aluminum alloy, the step-thru frame ensures easy mounting and dismounting while providing strength and stability. Perfect for all riders, it combines sleek design with uncompromising durability, making every ride feel secure and comfortable.
⚡ Powerful Motor
Feel the power of a 750W motor, reaching up to 1000W with 85Nm of torque. The Ranger Step-Thru 3.0 offers a dynamic riding experience, effortlessly reaching speeds of up to 28 MPH with Pedal Assist.
🔋 Long-Lasting Battery
Enjoy up to 90 miles on Pedal Assist with the removable 48V 15Ah battery powered by LG cells. Sleekly integrated into the frame, the battery maintains the bike's streamlined look while ensuring reliable performance for long-distance adventures.
Advanced Suspension
Stay comfortable and in control with a hydraulic suspension fork featuring 60mm of travel and lockout capability. This suspension system absorbs shocks and vibrations, providing a smooth, stable ride over uneven terrain.
📱 Smart and Responsive
Stay informed and in control with the TFT Smart Display, featuring a colorful, backlit screen for clear visibility in any lighting condition. The integrated torque sensor provides a smooth and responsive ride, enhancing overall safety and comfort.
💡 Tail Light
The rear brake light (12V 20 LUX) enhances your visibility on the road, ensuring safer rides in low-light conditions. Whether braking or cruising at night, it provides clear signals to those behind you.
🛑 Reliable Braking
Stay safe with hydraulic disc brakes equipped with 180mm rotors and a power-cut-off function, ensuring strong, consistent braking in all weather and road conditions.
🚲 All-Terrain Tires for Stability
Equipped with 26" x 4.0" Kenda fat tires, providing excellent traction and balance across various surfaces — from urban roads to off-road trails.
Specs & Size
 |

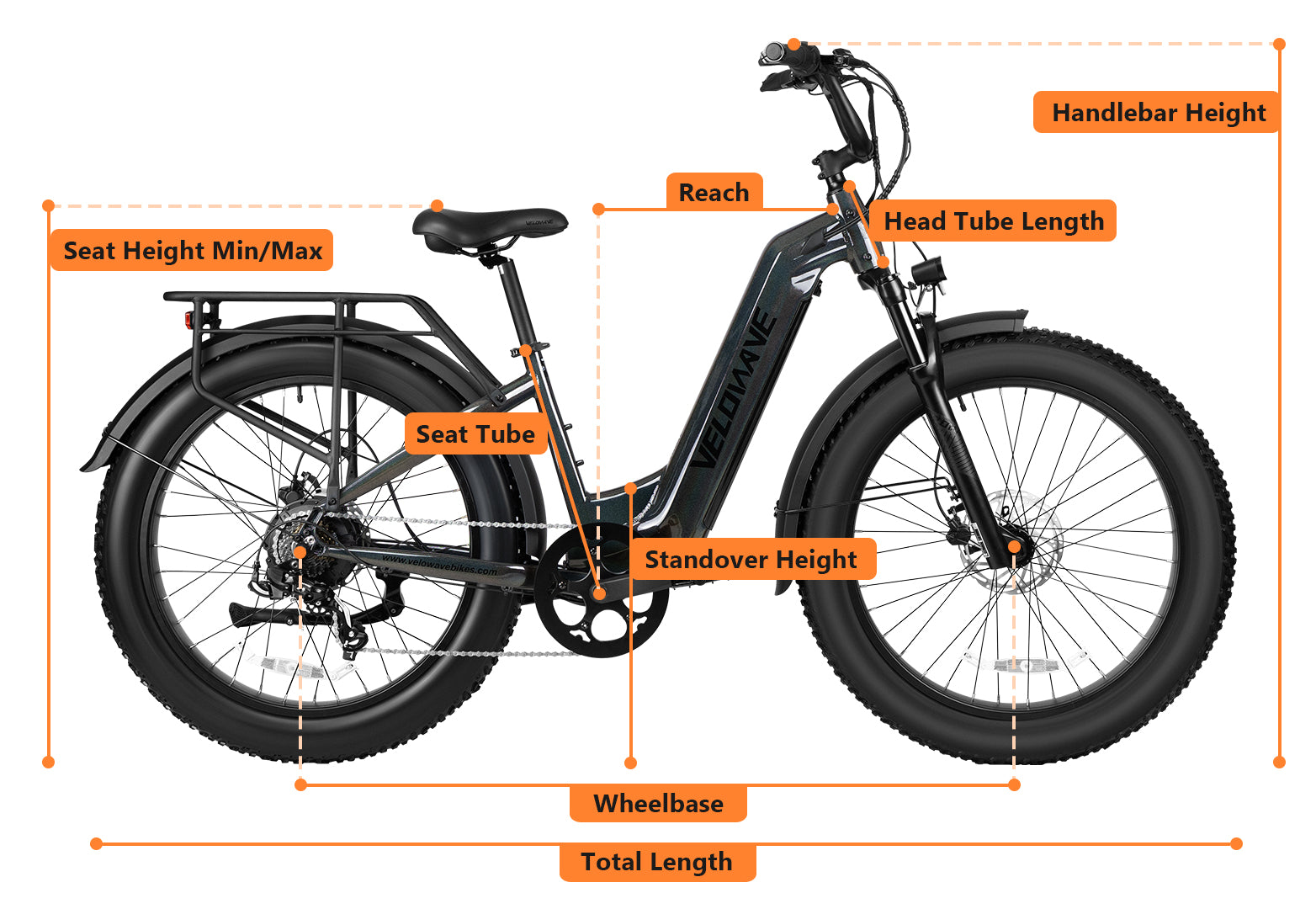

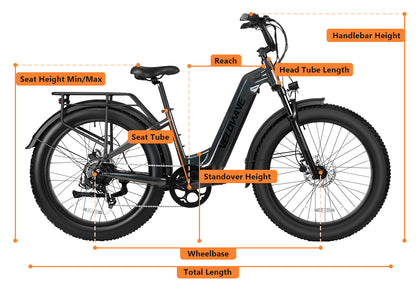

Geometry
|
General
- Class: Class 3 (up to 28mph with pedal assistance)
- Max Speed: Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
- Range: Avg. 65 Miles on PAS, up to 90 Miles on Level 1, 30 Miles on Throttle. Measured under standard conditions: 75kg load, 86°F, 70% humidity, level road. Actual results may vary.
Frameset
- Frame: 6061 Aluminum Alloy with Internal Battery
- Fork: Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
- Rim: Aluminum 26" 36H Front & Rear
- Spokes: Black Stainless, Front 13G x 244/246mm, Rear 12G x 217/219mm
- Hubs: Disc Nutted Front Axles
- Tires: Kenda 26" x 4.0" Fat Tires
- Tubes: Butyl Rubber, Schrader Valve
E-System
- Motor: 750W (Peak 1000W), 85Nm
- Throttle: Throttle on demand from a complete stop
- Display: TFT Smart Easy Read Display with Backlight, Colorful screen
- Battery: Removable Internal Lithium-ion 48V 15Ah (720Wh) with LG cells
- Pedal Assist: 5 Levels
- Sensor: Torque Sensor
- Charger: 48V 2 Amp, approx. 8-hour charging
- Light: Front 48V LED 75 LUX
- Tail Light: Rear Brake Light, 12V 20 LUX
Drivetrain
- Crankset: 170mm w/ 52T
- Rear Derailleur: Shimano ARDTY500D 7-Speed
- Freewheel: Shimano 14-28T, 7-Speed
- Shift Lever: Shimano 7-Speed RevoShift
- Chain: KMC 124 Link, 7-Speed
- Pedals: Alloy Platform
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, Ø30.4x350mm
- Seat Clamp: Ø35mm Quick Release
- Stem: Ø31.8mm bore, Ø28.6mm clamp, 40mm height, ±7° rise
- Handlebars: Aluminum Ø31.8mm, 720mm width
- Headset: Sealed Bearing Headset
- Grips: Ergonomic Comfort
- Brakes: Hydraulic Disc Brakes w/ 180mm discs, power-cut-off function
- Kickstand: Alloy, Rear Mount
- Fenders: Plastic 26" x 110mm
- Rear Rack: Aluminum alloy rear rack
Weight
- Product Weight: 35.5 kg (78.26 lbs) including battery
- Package Weight: 43.6 kg (96.12 lbs)
- Battery Weight: 4 kg (8.82 lbs)
- Max Load Capacity: 300 lbs
Dimensions
- Product Size: 1930 x 740 x 1210mm
- Package Size: 1590 x 325 x 895mm
